L322 Range Rover Service Procedures
ENGINE - V8
12-2-52 REPAIRS

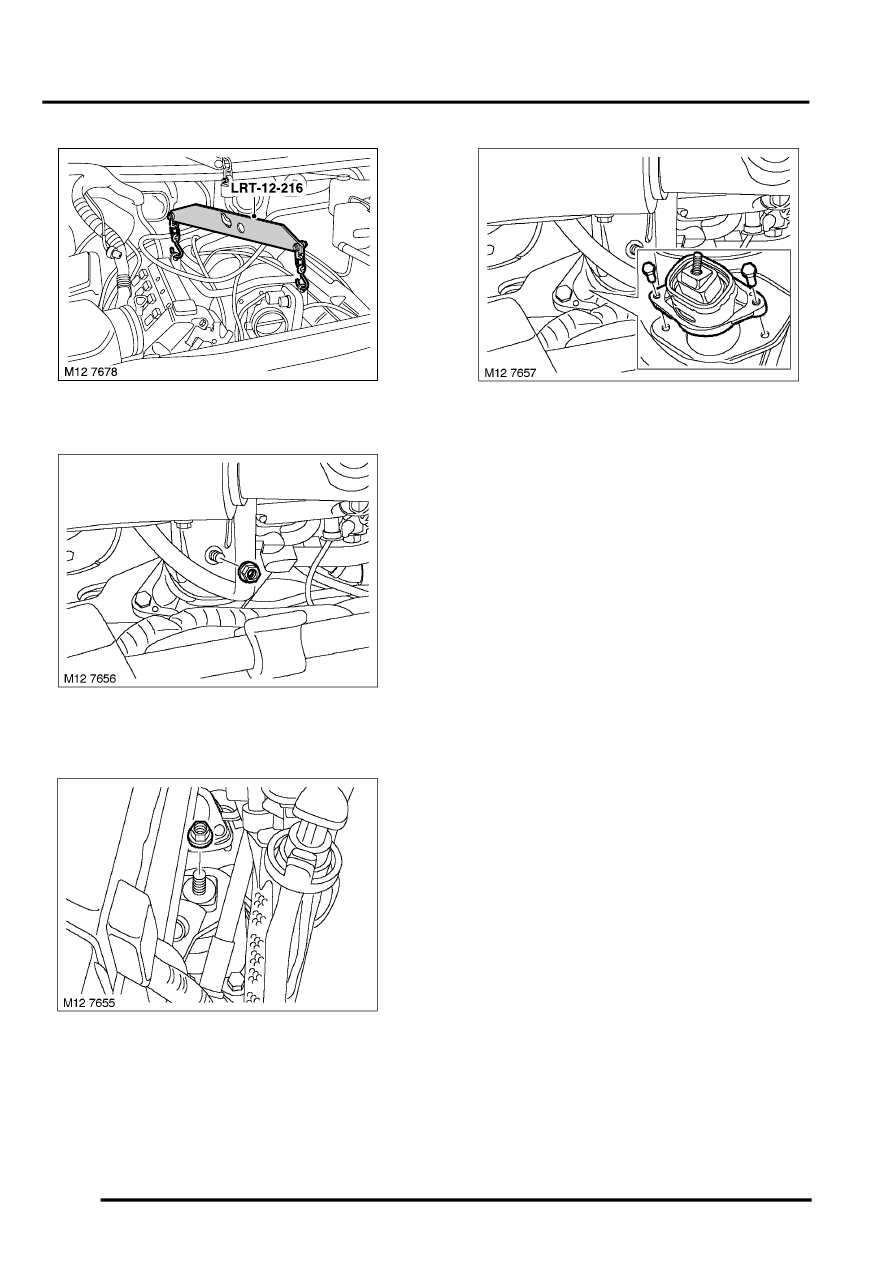

10. Fit LRT-12-216 to engine lifting eyes.
11. Remove nut securing RH engine mounting to
engine mounting bracket.
12. Remove nut securing LH engine mounting to
engine mounting bracket.
13. Connect chain to engine lifting bracket and
raise engine sufficiently only to clear mounting.
CAUTION: To prevent damage to the
radiator, guide the fan cowl clear of the
radiator as it is raised with the engine.
14. Remove 2 bolts securing RH engine mounting
to sub-frame, discard bolts.
15. Remove RH engine mounting.
NOTE: The RH engine mounting is removed
from underneath the vehicle between the
gearbox bell housing and the sub-frame.
Refit
1. Clean engine mountings and mating faces.
2. Fit RH engine mounting to sub-frame and
tighten new bolts to 56 Nm (41 lbf.ft).
3. Lower engine onto engine mountings.
NOTE: Guide the fan cowl into position as the
engine is lowered.
4. Remove engine lifting chains.
5. Fit 2 nuts securing engine mountings to engine
mounting brackets and tighten to 100 Nm (74
lbf.ft).
6. Remove engine lifting bracket.

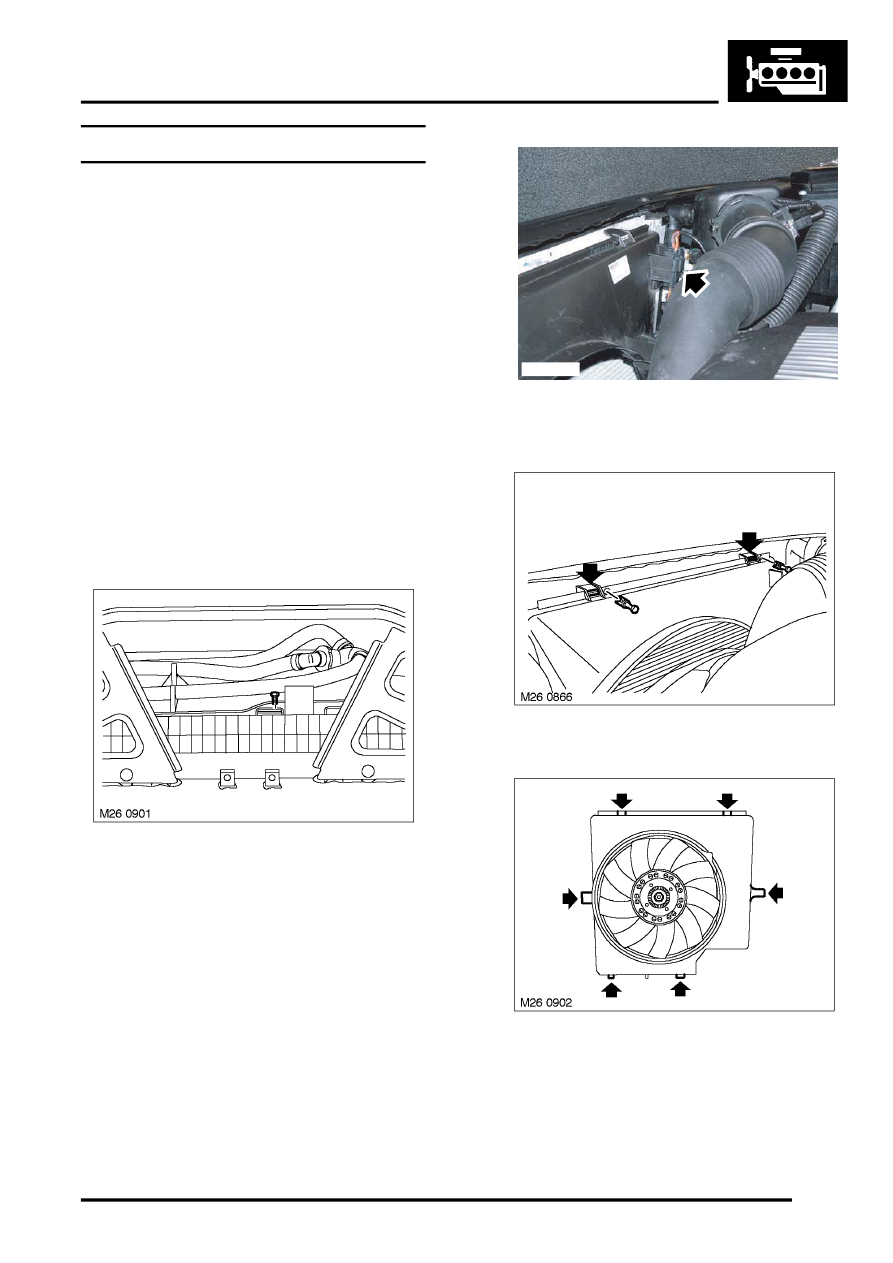

7. Fit fan cowl to radiator and fit securing scrivets.
8. Fit auxiliary cooling fan multiplug to fan cowl.
9. Fit screw securing fan cowl to radiator.
10. Fit undertray.
11. Connect air intake hose.
V8, REPAIRS, Hose - air flow meter to
throttle body.
12. Fit air intake plenum.
13. Connect battery earth lead.
