L322 Range Rover Service Procedures
ENGINE - V8
12-2-14 REPAIRS

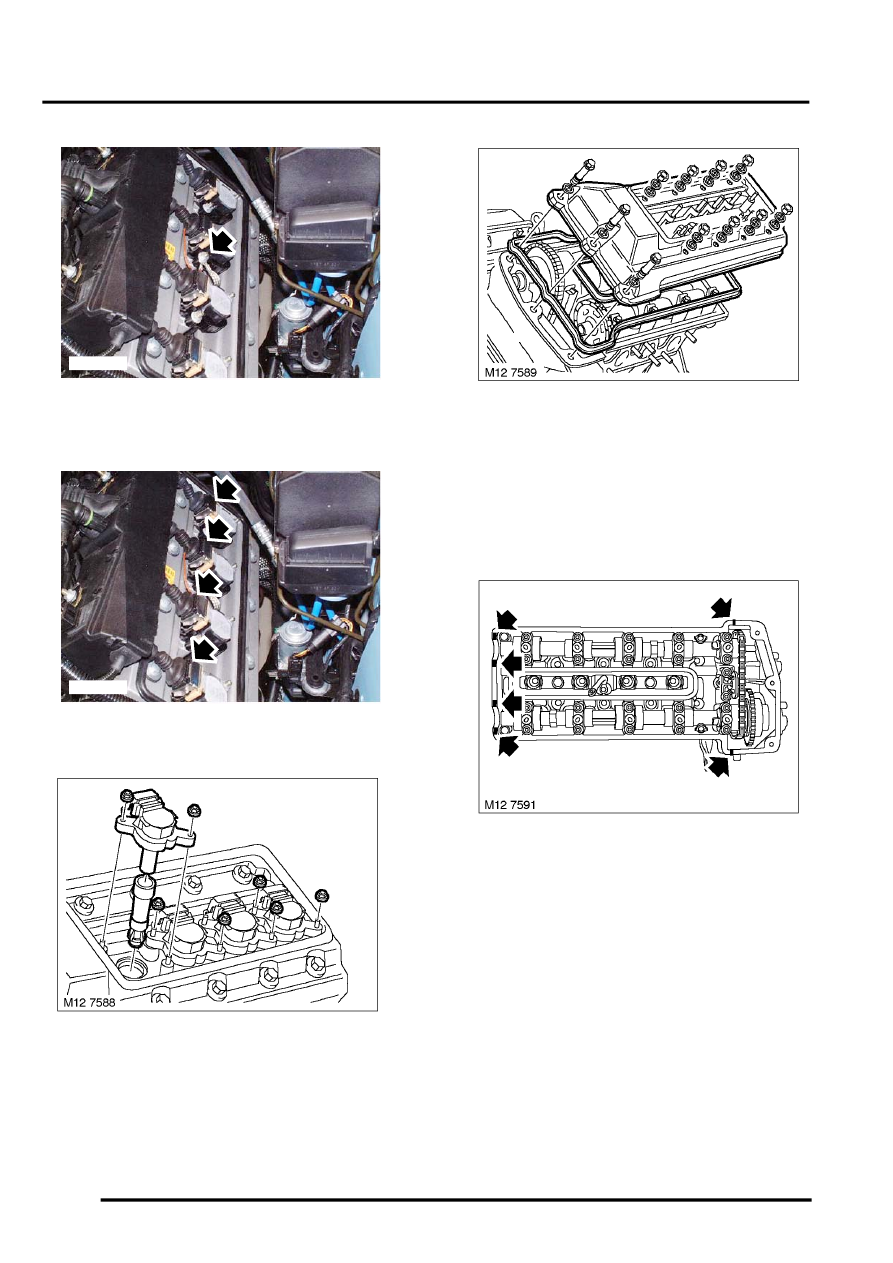

10. Remove nut and disconnect earth lead from
camshaft cover.
11. Disconnect multiplugs from ignition coils.
12. Remove 7 nuts securing ignition coils to
camshaft cover. Remove 4 ignition coils.
13. Discard ignition coil cover gasket.
14. Remove 8 nuts and 3 bolts securing camshaft
cover to cylinder head. Remove camshaft
cover, discard 2 gaskets and 11 sealing
washers.
Refit
1. Clean camshaft cover and mating face of
cylinder head.
2. Apply sealant, Part No. STC 50550 to areas
illustrated.
3. Fit 2 new gaskets and 11 new sealing washers
to camshaft cover and fit to cylinder head.
M86 5761
M86 5697
