L322 Range Rover Service Procedures
ENGINE - V8
REPAIRS
12-2-5

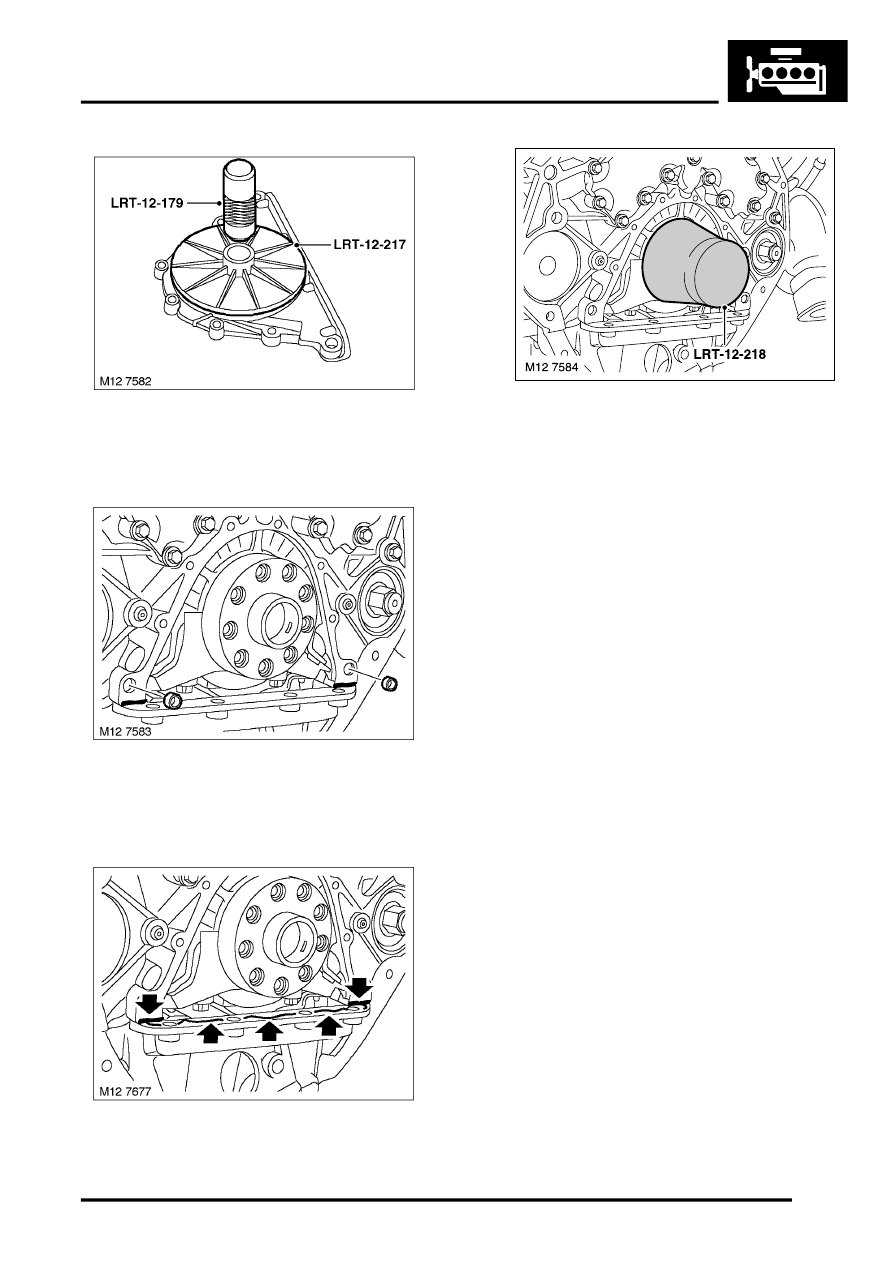

2. Fit LRT-12-217 and LRT-12-179 to new
crankshaft rear oil seal and fit new seal to
housing.
3. Check for correct fitment of dowels in cylinder
block.
4. Fit new gasket to crankshaft rear oil seal
housing.
5. Apply sealant , Part No. STC 50550 to upper oil
sump gasket contact point.
6. Fit LRT-12-218 to crankshaft. Apply a thin coat
of oil to inner lip of crankshaft rear oil seal, fit
seal and housing over LRT-12-218, fit onto
dowels and remove tool.
7. Fit new washers to 6 Torx bolts, fit 6 Torx bolts
and 6 bolts securing crankshaft oil seal housing
to cylinder block and tighten to 12 Nm (9 lbf.ft).
8. Fit torque converter drive plate.
9. Fill engine with oil.
Engine oil and filter - V8 engine.
10. Connect battery earth lead.
