Range Rover P38
LAND ROVER V8
5
REPAIR
Refit
6. Ensure all mating surfaces are clean.
7. Fit spacer and hub aligner to crankshaft.
8. Fit hub aligner screws. Tighten to
85 Nm (63
lbf.ft)
9. Fit drive plate and clamp ring.
10. Fit clamp ring bolts. Tighten to
45 Nm (33 lbf.ft)
11. Fit automatic gearbox and converter assembly.
See AUTOMATIC GEARBOX, Repair.

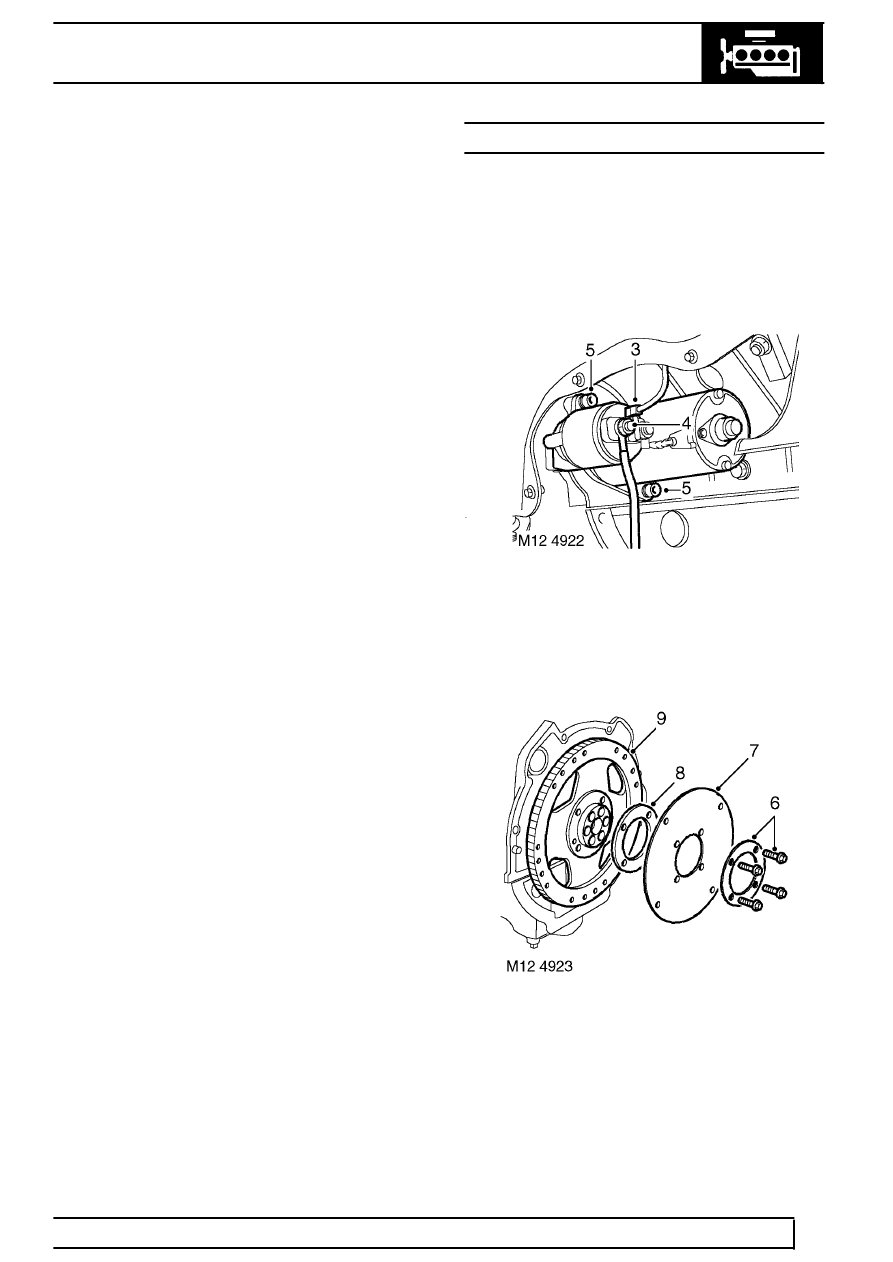

DRIVE PLATE - AUTOMATIC - from 99MY
Service repair no - 12.53.13
Remove
1. Remove gearbox.
See AUTOMATIC
GEARBOX, Repair.
2. Remove CKP sensor.
See FUEL SYSTEM,
Repair.
3. Remove Lucar from starter solenoid.
4. Remove nut securing battery lead to starter
solenoid and disconnect lead.
5. Remove 2 Allen screws securing starter motor
and remove starter motor.
6. Remove 4 bolts securing drive plate clamp ring
and remove ring.
7. Remove drive plate from hub.
8. Remove spacer.
9. Remove starter ring gear.
