Range Rover Classic
ZF
19
REPAIR
REPLACING BELLHOUSING
Service repair no - 44.17.01
1. Remove gearbox and transfer box assembly.
See ZF Auto with Borg Warner Transfer
Gearbox

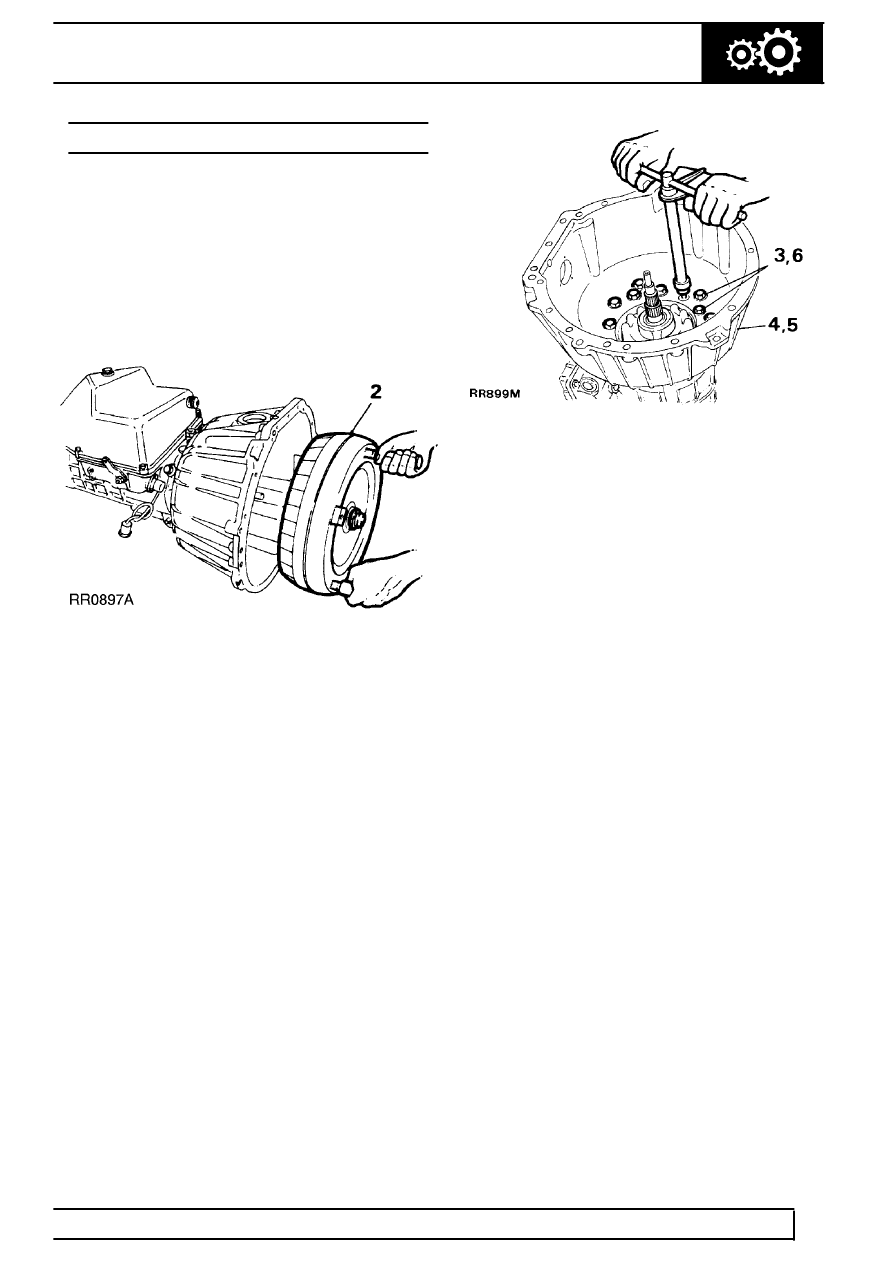

2. Place gearbox on bench. Remove torque
converter using torque converter handles
18G1501, taking care not to damage torque
converter/oil pump housing oil seal.
3. Remove eighteen hexagonal bolts.
4. Remove bell housing.
5. Fit new bell housing.
6. Secure bell housing, tighten eighteen bolts to
46
Nm.
7. Refit torque converter using torque converter
handles 18G1501. Check that dimension from
converter fixing boss to converter housing face is
50 mm. This dimension shows converter is
properly seated in housing.
8. Refit gearbox/transfer assembly.
See ZF Auto
with Borg Warner Transfer Gearbox
