Range Rover Classic
ZF
13
REPAIR

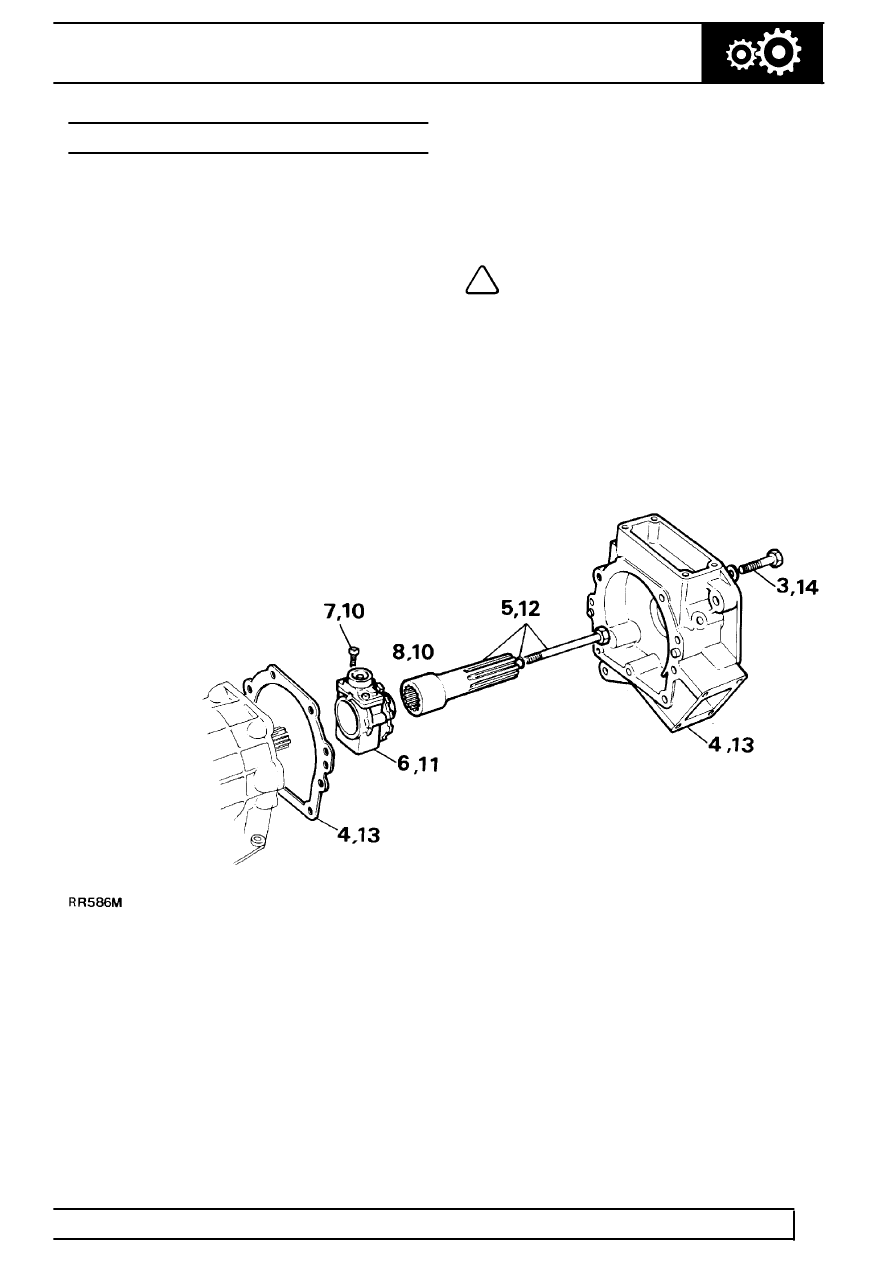

GOVERNOR HOUSING
Service repair no - 44.22.01
Remove
1. Remove transfer box.
See TRANSFER
GEARBOX, Repair, Borg Warner Transfer
Gearbox
2. Remove transfer gear selector housing.
3. Loosen nine bolts holding extension housing.
4. Remove extension housing ensuring that seal is
not damaged, discard gasket.
5. Remove extension shaft and retaining bolt with
’O’ ring. If Tdi vehicle, remove spacer.
6. Remove governor assembly with parking wheel.
7. Remove two screws holding governor housing.
8. Remove governor housing complete and
discard.
9. Inspect governor hub and parking wheel for
damage.
Refit
10. Fit new governor housing complete to governor
hub and parking wheel. Tighten to
10 Nm.
11. Push governor assembly with parking wheel
onto output shaft until fully seated.
NOTE: Apply petroleum jelly to ’O’ ring.
Ensure seal rings are snapped together
and seated.
12. Fit extension shaft, with spacer if Tdi, apply
Loctite 270 to retaining bolt. Using a new ’O’
ring. Tighten to
42 Nm.
13. Fit new gasket to rear of gearbox. Fit extension
housing, avoid damage to seal.
14. Tighten nine extension housing nine bolts to
23
Nm.
15. Fit transfer gear selector housing.
16. Tighten three bolts to
25Nm.
17. Refit transfer box.
