MG TF Factory Workshop Manual (2002-2005)22 · Electrical
22 · Electrical

Electric window switch (page 2 of 2)

Make
MG
Model
TF Factory Workshop Manual
Year
2002–2005
Section
Repairs
ElectricalElectric window switch · page 2 of 2
Diagram

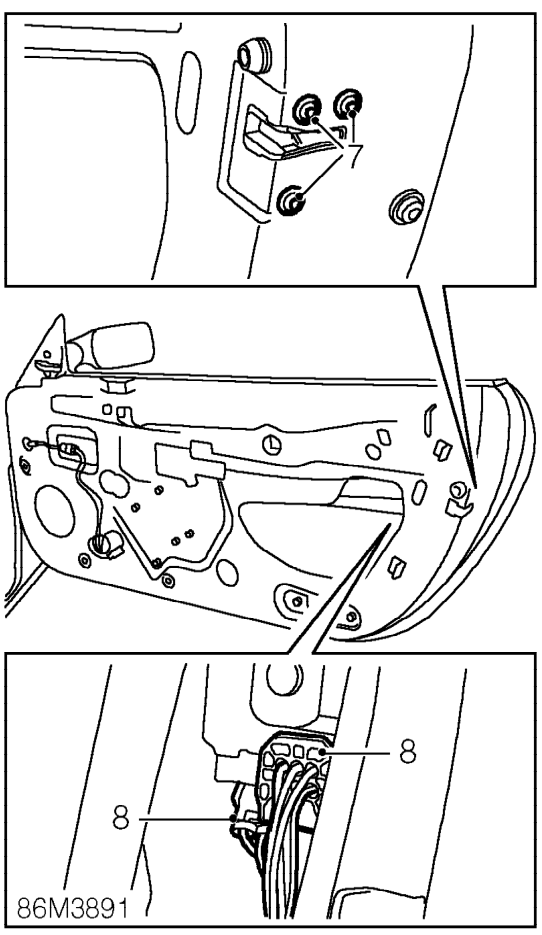

  1. Remove 3 Tx25 Torx screws securing latch assembly to door.
  2. Position latch assembly and disconnect 2 multiplugs.

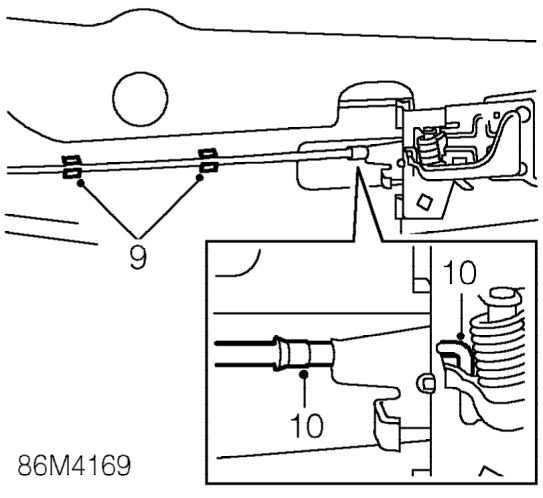

Position latch assembly and disconnect 2 multiplugs.
  1. Release cable from 2 inner door panel clips.
  2. Disconnect cable from remote door handle.
  3. Switch ignition ON and fully raise door glass.
  4. Switch ignition OFF.

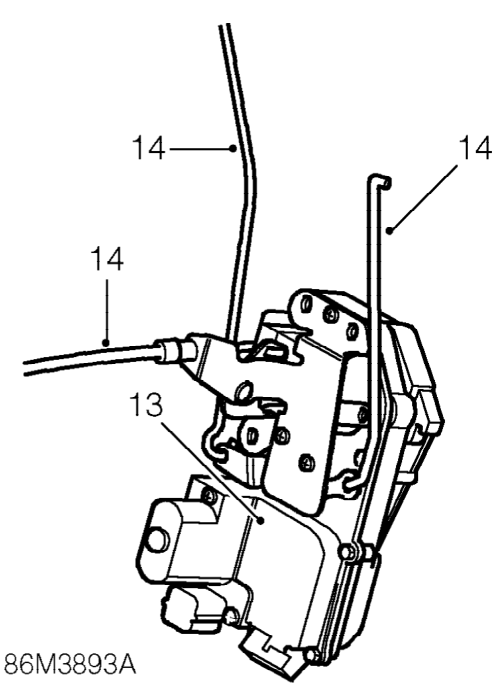

Switch ignition OFF.
  1. Remove latch assembly from door.
  2. Remove sill button, lock link rod and cable from latch assembly.
