Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition14 · Brakes and ABS
14 · Brakes

Master cylinder (page 2 of 5)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Brakes: repairs
Brakes and ABSMaster cylinder · page 2 of 5

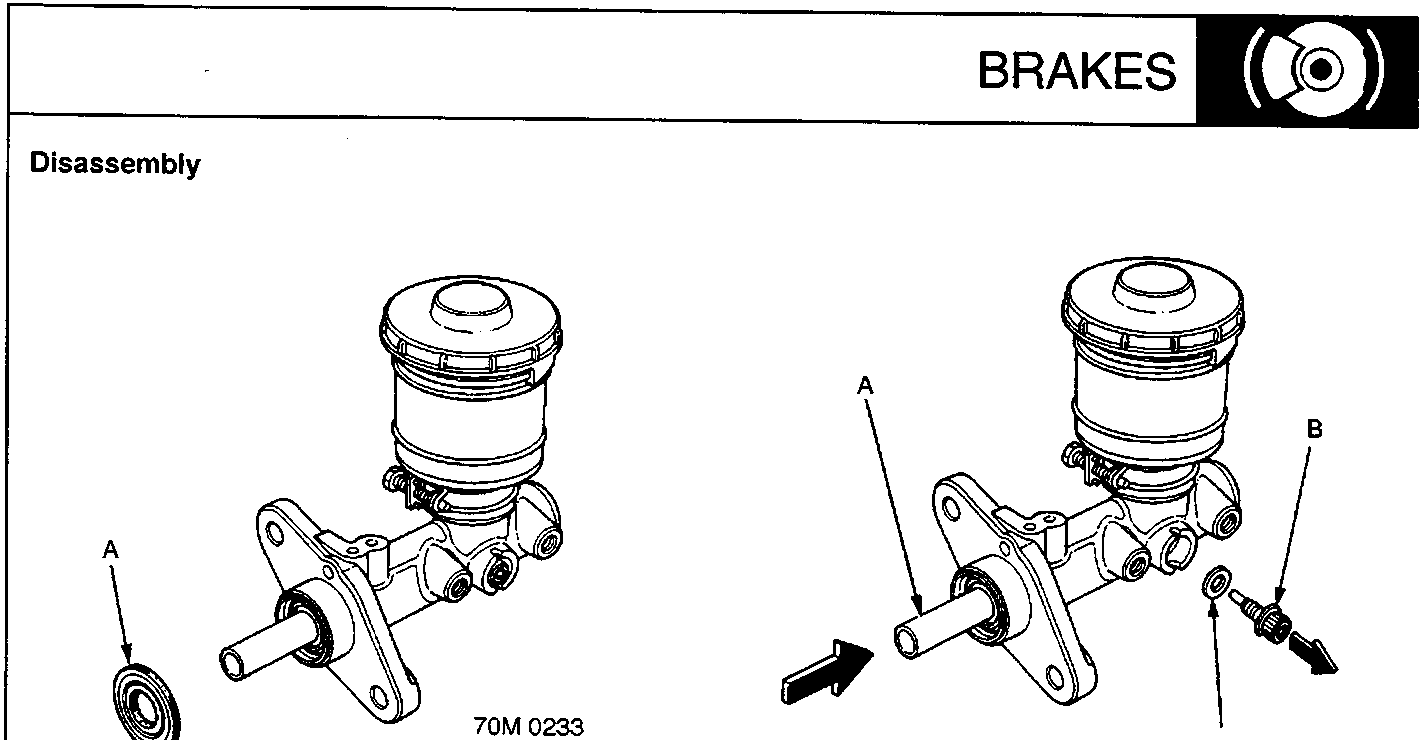

Two diagrams of a brake master cylinder showing the removal of the rod seal (left, 70M 0233) and the stop bolt with secondary piston and sealing washer (right, 70M 0235).

A Rod seal

  1. Remove the rod seal and discard.
  2. Clean all parts in brake fluid and air dry; blow out all passages with compressed air.

A Secondary piston
B Stop bolt
C Sealing washer

  1. Remove the stop bolt while pushing in the secondary piston. Replace the sealing washer.

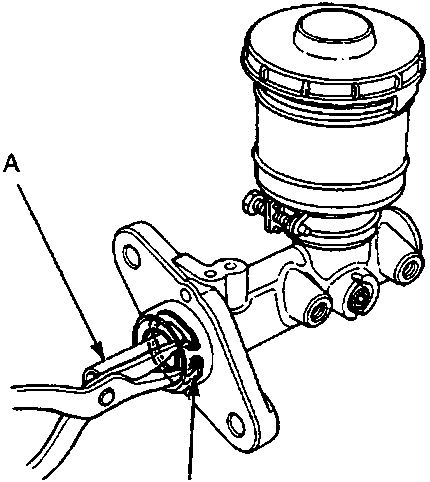

Diagram of a brake master cylinder showing the removal of the circlip from the secondary piston bore (70M 0234).

A Secondary piston
B Circlip

  1. Remove the circlip while pushing in the secondary piston. Replace the circlip.
