Master cylinder (page 5 of 5)

CAUTION: Do not allow brake fluid to come into contact with the paintwork as it will cause surface damage. If brake fluid is spilled on the paintwork, wash it off immediately with water.

• Clean all parts in brake fluid and air dry; blow out all passages with compressed air.
• Before reassembling, check that all parts are free of dust and other foreign particles.
• Replace parts with new ones whenever specified to do so.
• Make sure no dirt or other foreign matter is allowed to contaminate the brake fluid.
• Do not mix different brands of brake fluid as they may not be compatible.
• Do not reuse the drained fluid. Use only clean DOT 4 brake fluid.
• Replace the master cylinder if the bore is damaged or worn. Do not hone or attempt to refinish the bore.

Note: Coat piston cups, pressure cup and master cylinder bore with clean brake fluid. Use recommended greases in the master cylinder seal set.

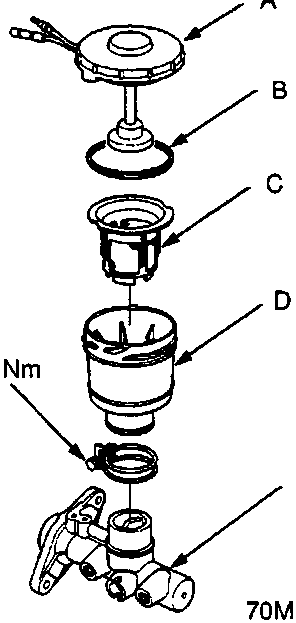

1. Reservoir cap
2. Reservoir seal
3. Strainer
4. Reservoir
5. Master cylinder
1. Install the reservoir on the master cylinder with a clamp as shown.
2. Install the reservoir seal in the groove of the reservoir cap.
3. Install the strainer and reservoir cap on the reservoir.

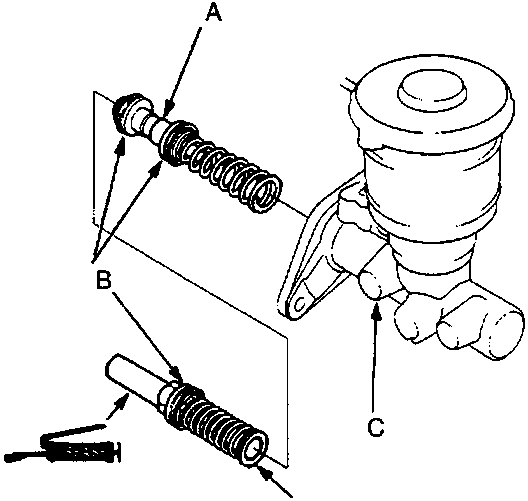

1. Primary piston assembly
2. Cups
3. Master cylinder
4. Secondary piston assembly
4. Apply recommended grease in the master cylinder seal set to a new secondary piston.
5. Lubricate the cups of new primary and secondary piston assemblies with clean brake fluid, and install them into the master cylinder.

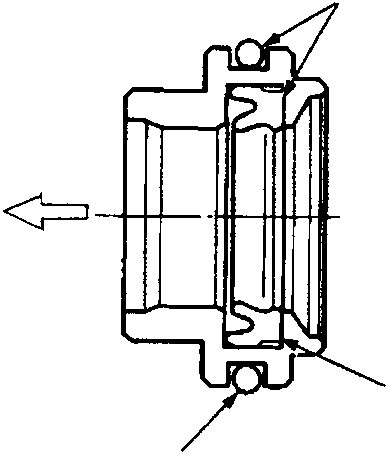

1. O-Ring
2. Secondary cup
6. Apply recommended grease in the master cylinder seal set to a new O-ring and the secondary cup in a new piston guide and install the O-ring onto the piston guide.
