Brakes: repairs
Brakes and ABSOriginal page · page 3 of 4

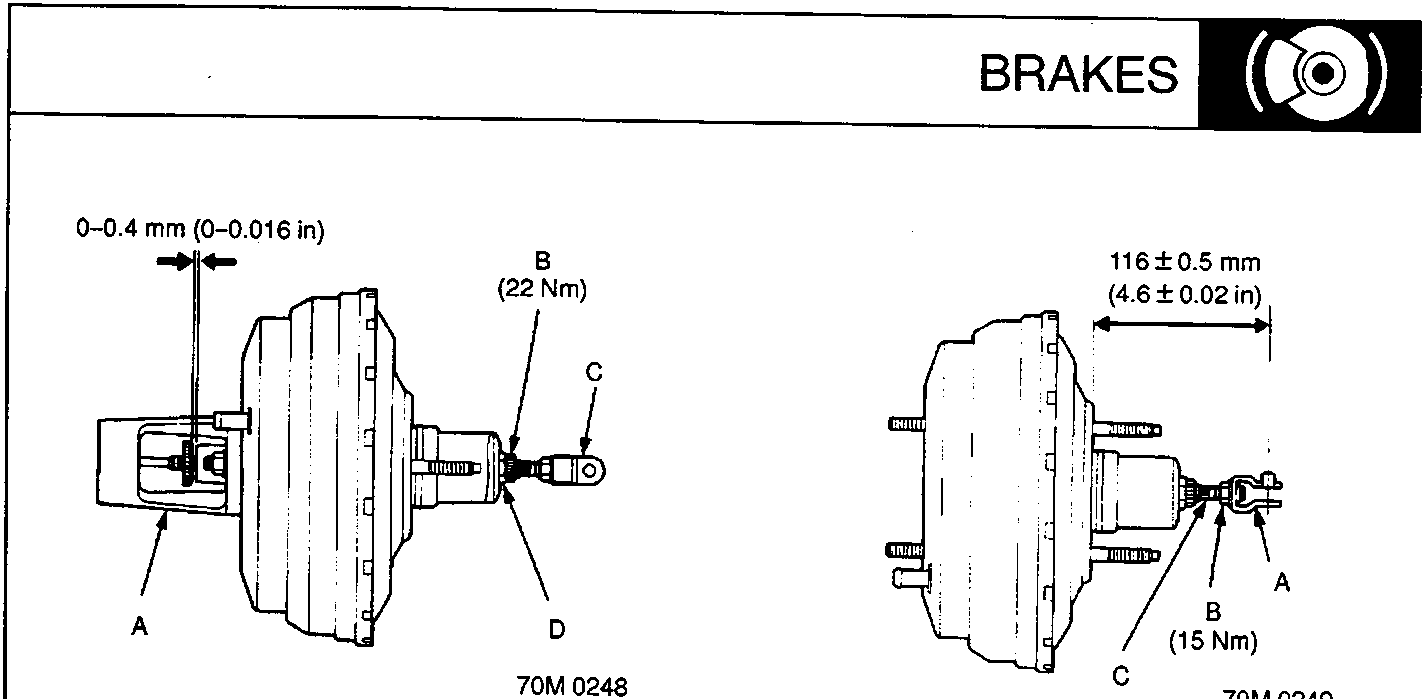

Two diagrams of master cylinder pushrod adjustment. Left diagram shows clearance measurement of 0-0.4 mm and torque of 22 Nm on a star locknut, with labels A, B, C, D. Right diagram shows pushrod length of 116 ± 0.5 mm and torque of 15 Nm on a clevis locknut, with labels A, B, C. Diagram numbers are 70M 0248 and 70M 0249.

A     Pushrod adjustment gauge

B     Star locknut

C     Clevis

D     Adjuster

A     Clevis

B     Locknut

C     Pushrod

  1. If clearance is incorrect, loosen the star locknut and turn the adjuster in or out to adjust.

Note: Adjust the clearance while the specified vacuum is applied to the booster.
Hold the clevis while adjusting.

  1. Tighten the star locknut securely.
  2. Adjust the pushrod length as shown if the booster is removed.
  3. Install the master cylinder.
