Refit (page 2 of 2)

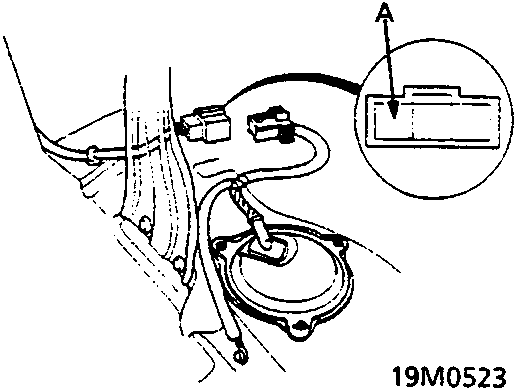

A YEL (+) 4. Check that battery voltage is available at the fuel pump connector when the ignition switch is turned ON (positive probe to the YEL wire, negative probe to the body earth). [Except KE]: 1. If battery voltage is available, replace the fuel pump. 2. If there is no voltage, check the fuel pump earth and wire harness. [KE]: 1. If battery voltage is available, replace the fuel pump. 2. If there is no voltage, replace the inertia switch. ● If voltage is available, replace the fuel pump. ● If there is no voltage, check the fuel pump earth and wire harness. Remove WARNING: Do not smoke while working on fuel system. Keep open flames away from your work area. 1. Remove the fuel tank.

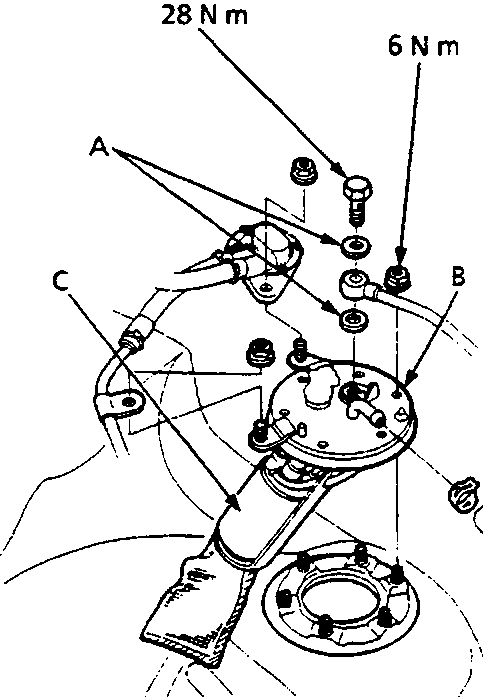

A Washer B Fuel pump bracket C Fuel pump 2. Remove the fuel pump mounting nuts. 3. Remove the fuel pump from the fuel tank. Refit WARNING: Do not smoke while working on fuel system. Keep open flames away from your work area. 1. Position the fuel pump to the fuel tank. Fit and tighten securing nuts to 6 Nm. 2. Use new washers and secure the banjo union to the pump with the banjo bolt. Tighten the banjo bolt to 28 Nm. 3. Refit the fuel tank.
