Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition07 · Manual gearbox
07 · Transmission

Disassembly/Reassembly (page 2 of 3)

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs
Manual gearboxDisassembly/Reassembly · page 2 of 3

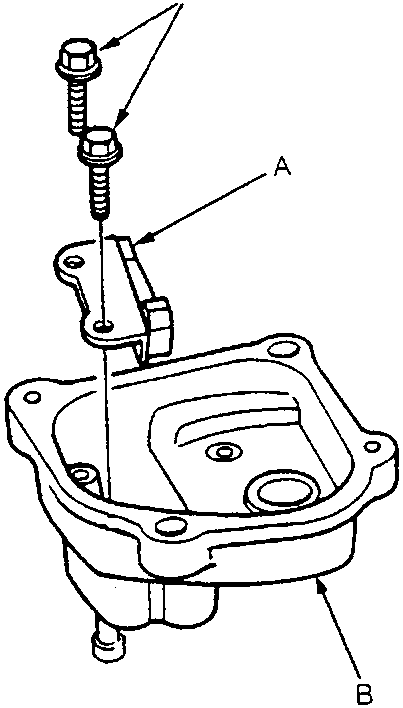

Diagram showing reverse lock cam and shift arm cover with bolts labeled 6 x 1.0 mm and 15 N m

15 N m

  1. Reverse lock cam
  2. Shift arm cover
  3. Remove the reverse lock cam.

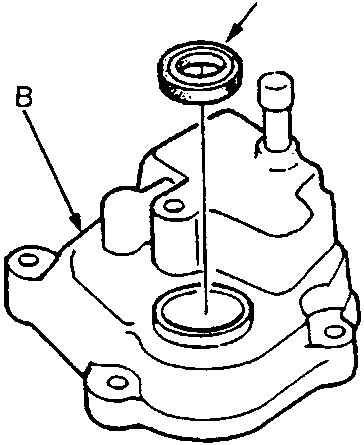

Diagram showing oil seal and shift arm cover on gearbox housing
  1. Oil seal
  2. Shift arm cover
  3. Remove the oil seal – Replace.

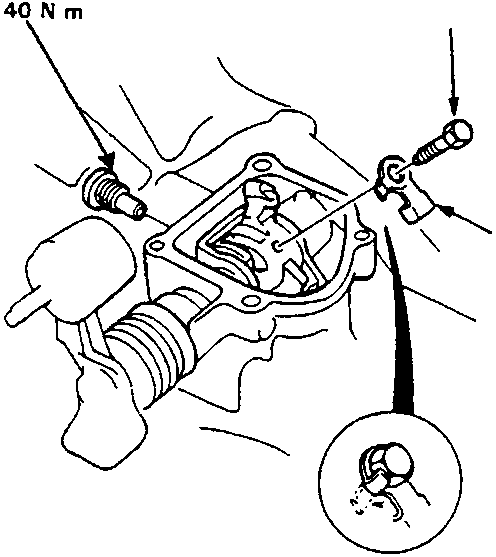

Diagram showing interlock bolt and lock washer being removed from gearbox with torque values 40 N m and 30 N m
  1. Interlock bolt
  2. Lock washer
  3. Bend the tab of the lock washer – replace, then remove the bolt.
  4. Remove the interlock bolt.

Note: Apply liquid gasket to the threads before reassembly.
