Manual gearboxInspection · page 2 of 3

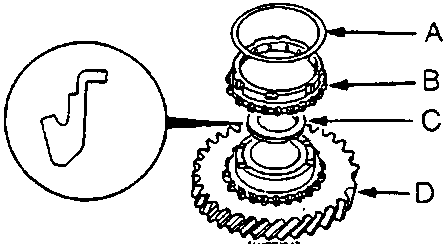

Exploded view of the 1st gear assembly showing synchro spring, synchro ring, friction damper, 1st gear, needle bearing, thrust shim, and countershaft

A   Synchro spring

B   Synchro ring

C   Friction damper

D   1st Gear

E   Needle bearing

F   Thrust shim

G   Countershaft

  1. Install the thrust shim, needle bearing, 1st gear, friction damper, synchro ring, and synchro spring.

Note: Reassemble the 1st gear and friction damper before installation.

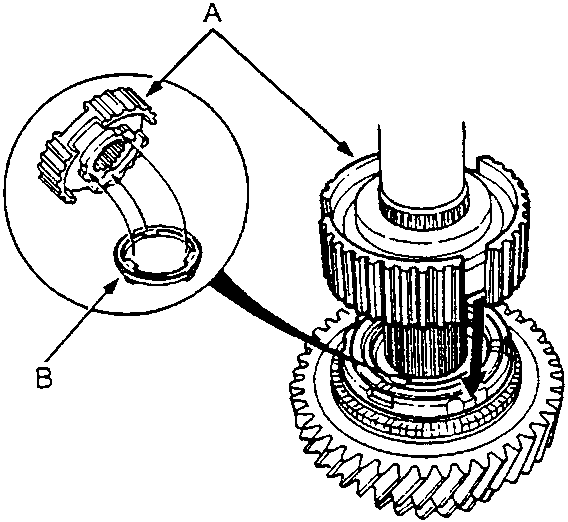

Close-up detail of the 1st/2nd synchro hub and friction damper alignment on the shaft

A   1st/2nd Synchro hub

B   Friction damper

  1. Install the 1st/2nd synchro hub by aligning the friction damper fingers with 1st/2nd synchro hub grooves.

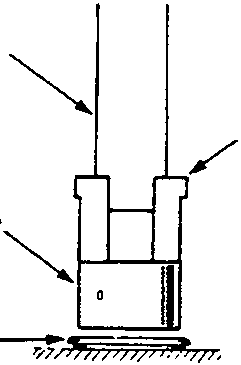

Diagram showing the use of special tools 18G 1354 and 18G 1354-4 to press the friction damper onto the spacer collar

A   Press

B   Spacer collar

C   Friction damper

  1. Install the friction damper on the spacer collar using the special tools and a press as shown.
