Inhibitor switch - adjust (Automatic gearbox - JF403E)

INHIBITOR SWITCH - ADJUST

Service repair no - 44.15.18

1. Disconnect battery earth lead.

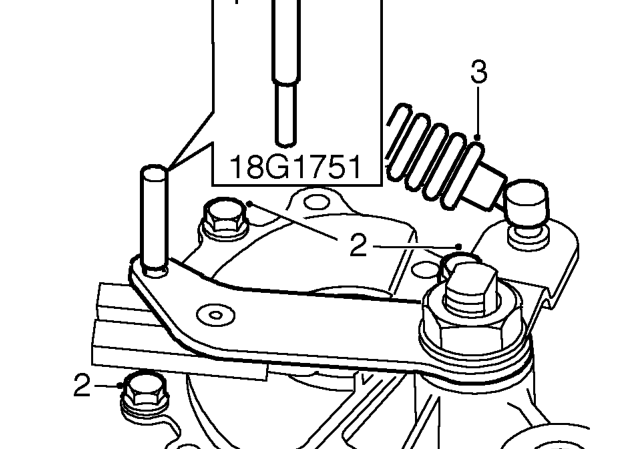

2. Slacken 3 bolts securing inhibitor switch to gearbox casing.
3. Set selector lever to ’N’ position.
4. Fit alignment pin tool 18G 1751 to selector lever on gearbox and align inhibitor switch.
5. Tighten switch retaining bolts to 3 Nm and remove tool 18G 1751
6. Connect battery earth lead.

GEARBOX FLUID

Fluid level check and top-up - Cold level

NOTE: The vehicle must not have been driven for at least three hours before the COLD level check is made. Always check fluid level with vehicle standing on level surface.

1. Apply hand brake.
2. Start engine and allow it to warm to normal operating temperature.
3. With the engine idling, move the selector lever slowly through each selector position.
4. Stop in each position long enough for the gear to engage.
5. Return selector to ’P’ position.

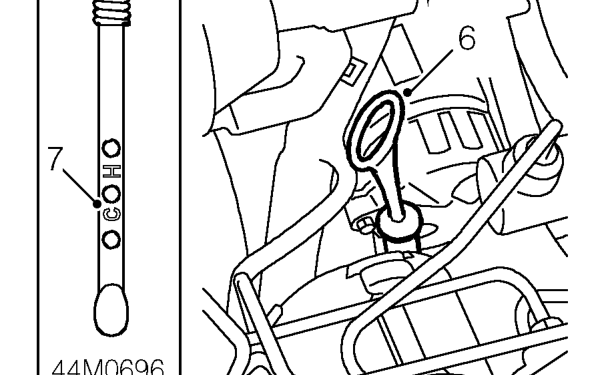

6. Remove and wipe dip stick with lint free cloth.
7. Re-insert dipstick and wait several seconds, remove dipstick and fluid level should be within the ’C’ range on the dipstick.
8. Top-up if required, through the dipstick hole with DEXRON II D type automatic transmission fluid. Refit dipstick.
9. After checking fluid level at the COLD level check level as described in, Fluid level check and top-up - Hot level.
