Fourth Gear in ’D’ Range (Automatic gearbox - JF403E) (page 2 of 2)

Make

Rover

Model

800 Workshop Manual

Year

1996–1999

Section

Description and operation

Automatic gearbox - JF403EFourth Gear in ’D’ Range · page 2 of 2

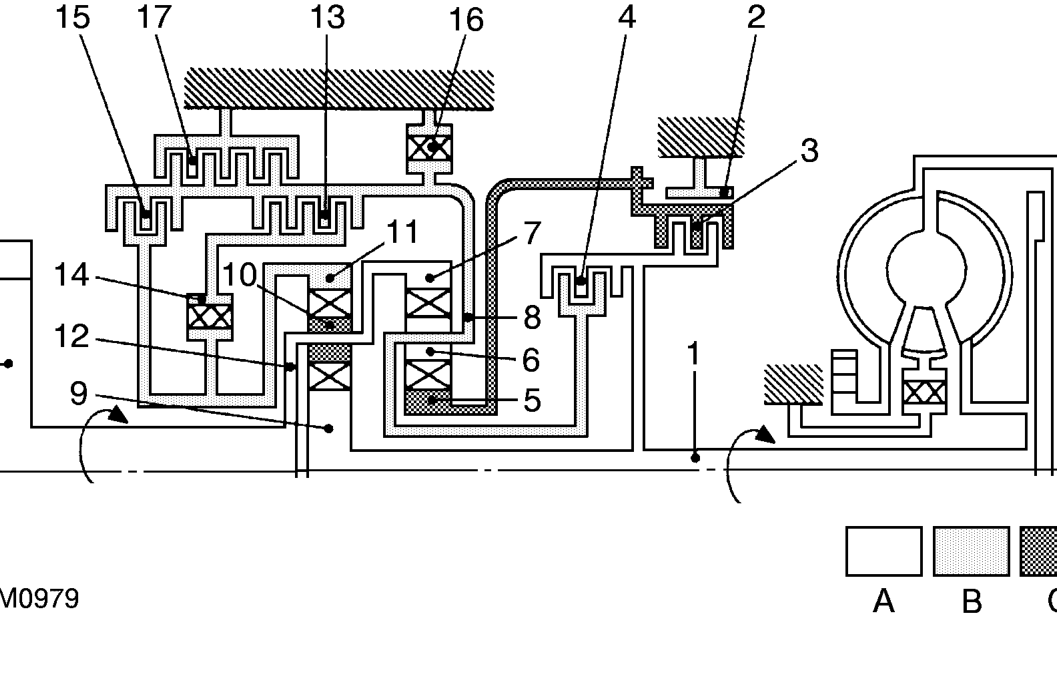

1. Input shaft
2. Brake band
3. Reverse clutch
4. High clutch
5. Front sun gear
6. Front pinion gear
7. Front internal gear
8. Front planetary carrier
9. Rear sun gear
10. Rear pinion gear
11. Rear internal gear
12. Rear planetary carrier
13. Forward clutch
14. Forward one-way clutch
15. Over-run clutch
16. Low one-way clutch
17. Low and reverse brake
18. Output shaft A.Forward rotation B.Locked C.Reverse rotation

17 Transmission
