Cylinder head bolts:

Make

Rover

Model

800 Workshop Manual

Year

1996–1999

Section

Torque wrench settings › Cylinder head bolts:

InformationCylinder head bolts:

Cylinder head bolts:

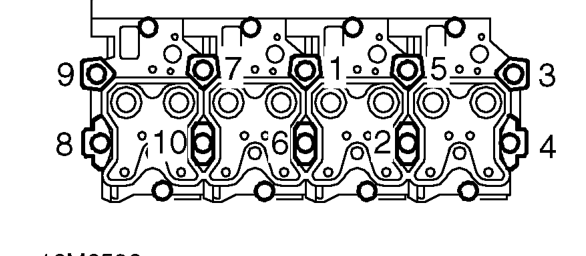

Tighten 1 to 10 in sequence	30 Nm
Recheck by repeating tightening sequence.

Tighten 1 to 10 in sequence	70°then another 70°

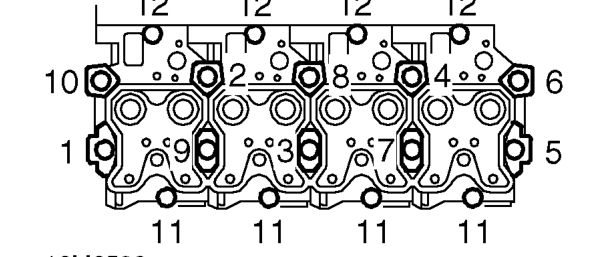

Tighten 11 then 12	30 Nm then a further 85°
Run engine for 20 minutes.
Cool for 4 hours.
Starting at bolt No. 1, loosen off then tighten	30 Nm then a further 130°.
Repeat procedure, one bolt at a time for bolts 2 to
10.
Recheck by torque tightening bolts 11 and 12	90 Nm

Engine mountings and steady bars:

RH mounting to engine block bolts	75 Nm
RH engine mounting through bolt	45 Nm
Front engine mounting to bracket top nut	90 Nm
Front engine mounting to cross-member bolts	45 Nm
Front engine mounting bracket to block screws	45 Nm
Rear engine mounting to bracket bottom nut	90 Nm
Rear engine mounting to cross-member bolts	45 Nm
Engine steady bar through bolts	45 Nm
Engine front steady bar bracket to cross-member,
block screws	45 Nm
Engine rear steady bar bracket to engine bolts	80 Nm
Centre beam to cross-member bolts	60 Nm
