Rover 800 Workshop Manual (1996-1999)19 · Steering
19 · Steering & suspension

Power steering pump - diesel (page 2 of 2)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
SteeringPower steering pump - diesel · page 2 of 2
Diagram

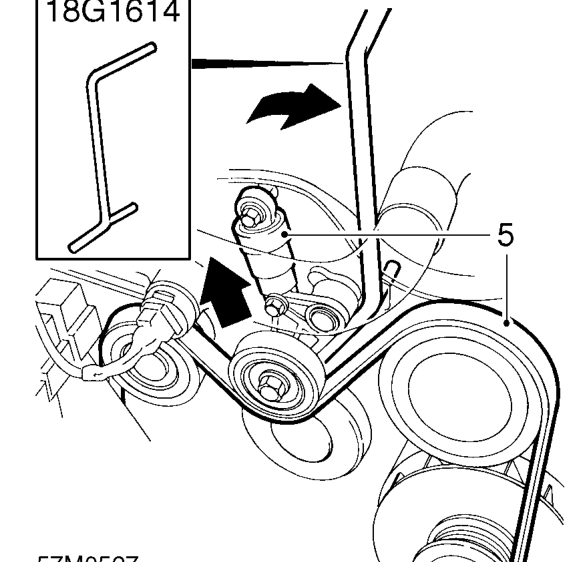

  1. Fit tool 18G 1614 to power steering pump bracket.
  2. Raise tensioner and release ancillary drive belt from PAS pump pulley.
Raise tensioner and release ancillary drive belt from PAS pump pulley.

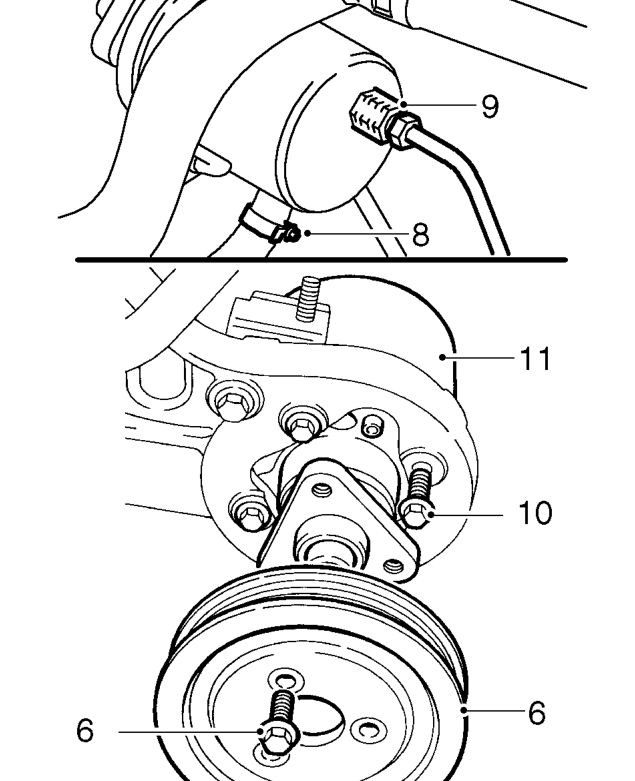

  1. Remove 3 bolts securing pulley to power steering pump. Remove pulley.
  2. Position container to collect fluid spillage.
  3. Loosen clip screw securing fluid inlet hose to power steering pump and disconnect hose.
  4. Loosen high pressure union and disconnect hose from pump.

CAUTION: To prevent damage to components, use two spanners when loosening or tightening unions.

CAUTION: Plug the connections.

  1. Remove 4 bolts securing power steering pump to mounting bracket.
  2. Remove power steering pump.
