Power steering pump - KV6 (page 2 of 2)

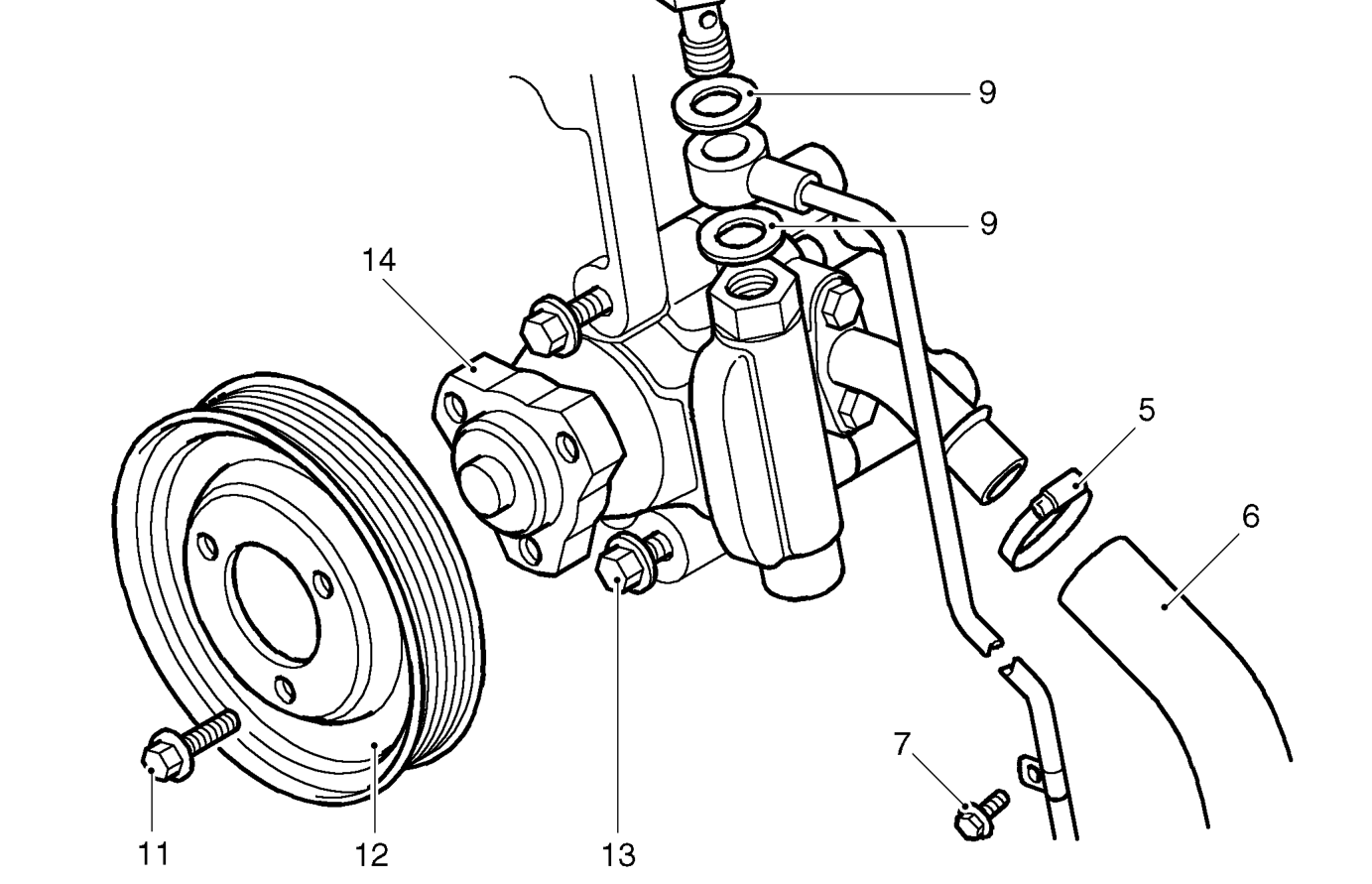

5. Loosen clip securing fluid inlet hose to power steering pump.
6. Disconnect fluid inlet hose from power steering pump.
7. Remove bolt securing fluid outlet pipe clamp to bracket.
8. Remove banjo bolt and disconnect fluid outlet pipe from power steering pump.

CAUTION: To prevent damage to components, use two spanners when loosening or tightening unions.

9. Remove and discard sealing washers from fluid outlet hose.
10. Plug hose and power steering pump connections to prevent excess fluid loss and the ingress of dirt and moisture into the system.
11. Remove 3 screws securing pulley to power steering pump.
12. Remove power steering pump pulley.
13. Remove 3 bolts securing power steering pump to mounting bracket.
14. Remove power steering pump.
