Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement16 · Steering
16 · Steering & suspension

Power steering rack (page 2 of 2)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual Supplement
Section
Repairs
SteeringPower steering rack · page 2 of 2
Diagram

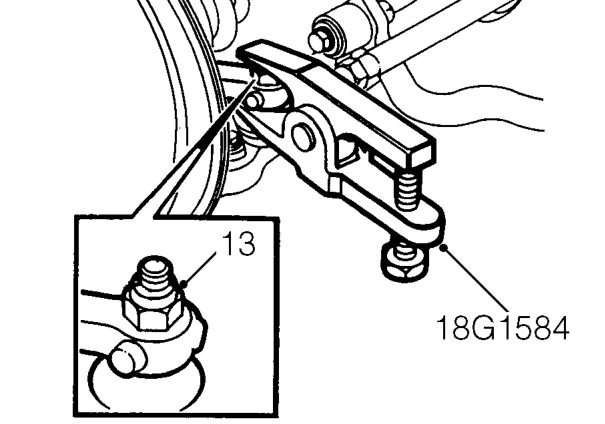

  1. Remove nuts securing LH and RH track rod ends to front hubs, break taper joints using tool 18G 1584. Discard nuts.

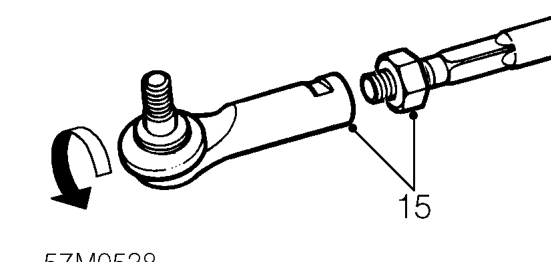

  2. Note number of threads exposed from each track rod end lock nut for reference.
Note number of threads exposed from each track rod end lock nut for reference.
  1. Loosen locknuts and remove track rod ends from steering rack.
Loosen locknuts and remove track rod ends from steering rack.

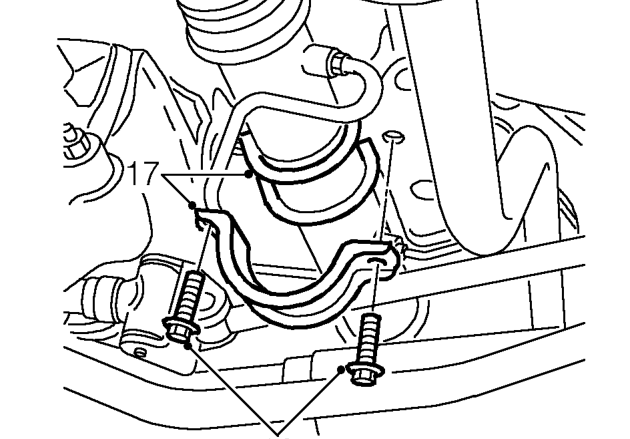

  1. Remove 2 bolts securing steering rack clamp.
  2. Remove clamp and collect rubber.
Remove clamp and collect rubber.
  1. Remove 2 flange bolts securing steering rack to rear beam.
  2. Lower steering rack sufficiently to release pinion shaft from body aperture.
  3. Manoeuvre rack free of vehicle.
