Remove (page 2 of 2)

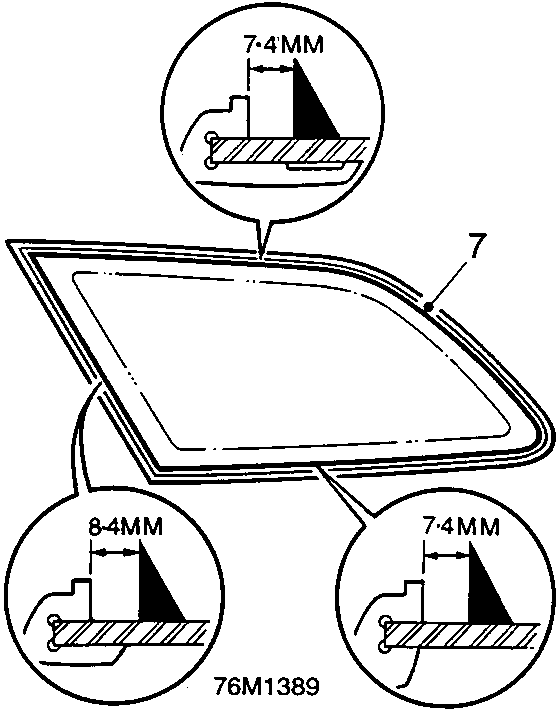

7. Apply an even 12 mm high x 8 mm base bead of sealer around the edge of the moulding as shown.

Note: Make bead thicker at corners.

8. Remove backing tape from adhesive foam strip.
9. Open a front door window.

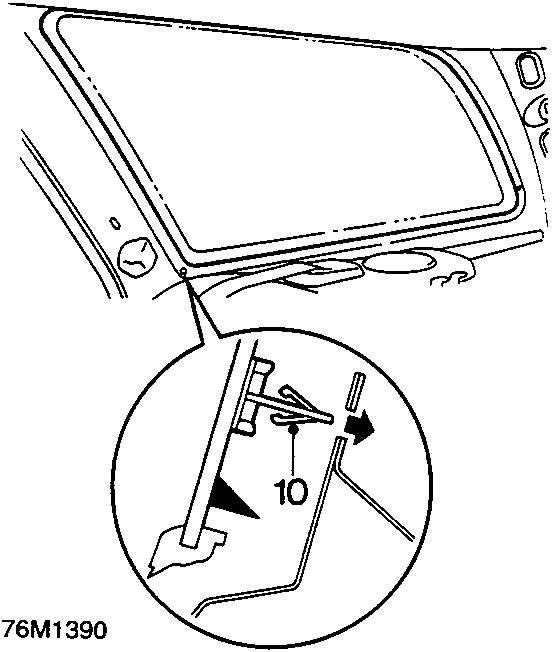

10. Attach suction lifters to glass. Align clip to body and glass to aperture, press evenly until clip engages and the glass moulding is fully seated all round.
11. Remove excess sealer with a knife and wipe from glass with solvent.
12. Test sealer for leaks, apply additional sealer as necessary. If water is used, allow sealer to dry. Spray water around glass and check for leaks. Mark any area that leaks. Dry glass and sealant then apply additional sealer.
13. Use solvent to clean any sealant from paint work. Use clean gauze to wipe off surfaces when dry.
14. Fit 'D/E' post finisher, see 'D/E' post finisher – Tourer.
