Camshaft cover gasket (page 3 of 3)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Engine 1.4 K8Camshaft cover gasket · page 3 of 3

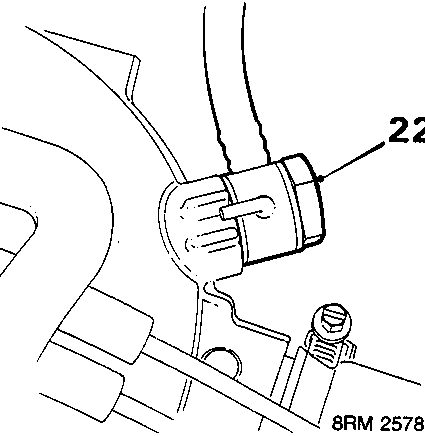

Diagram showing component 22, a banjo bolt connection on the inlet manifold
  1. Remove banjo bolt and discard 2 sealing washers, disconnect brake vacuum hose from inlet manifold.
  2. Slacken locknut, throttle cable to abutment bracket.
  3. Disconnect throttle cable from throttle cam and bracket, position aside.

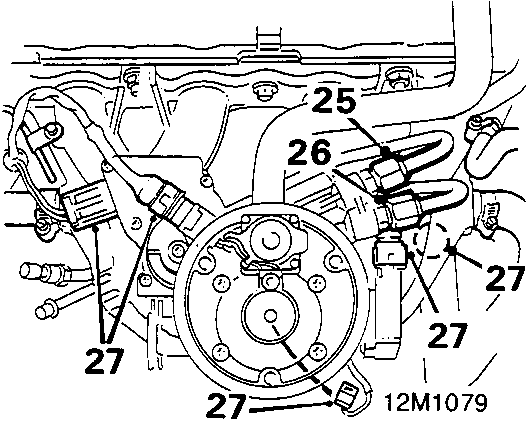

Diagram showing components 25, 26, and 27 (fuel pipes, clips, and multiplugs) on the engine manifold area
  1. Disconnect fuel feed pipe union.
  2. Release clip, disconnect fuel return hose.

WARNING: Position cloth to absorb spillage of fuel, plug the connections.

  1. Disconnect multiplugs from injector, stepper motor, throttle potentiometer, coolant sensor and Lucar from manifold heater.

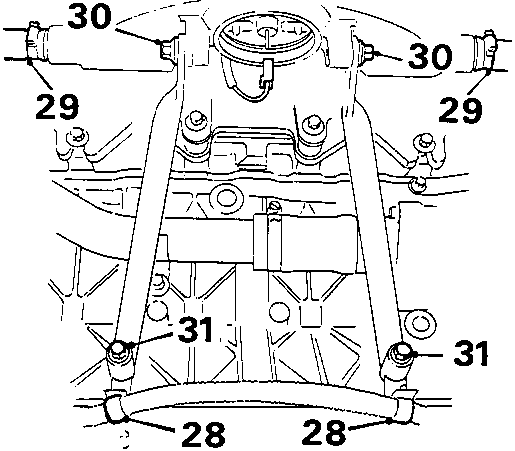

Diagram showing components 28, 29, 30, and 31 (engine harness, coolant hoses, support stays, and bolts) on the inlet manifold assembly
  1. Release engine harness from manifold support struts.
  2. Slacken clips and disconnect 2 coolant hoses from inlet manifold.
  3. Remove 2 bolts securing support stays to inlet manifold.
  4. Slacken 2 bolts securing support stays to cylinder block.

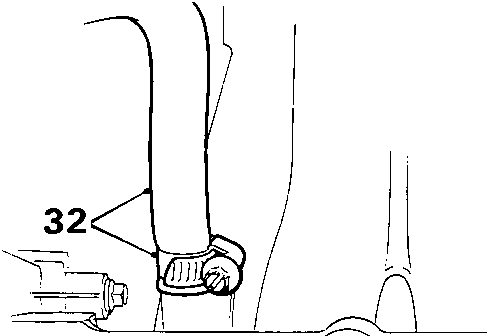

Diagram showing component 32, an expansion tank hose connection being slackened with a clip
  1. Slacken clip and disconnect expansion tank hose from inlet manifold.
