Engine 1.6 D.O.H.C.8RM 2329 · page 2 of 6

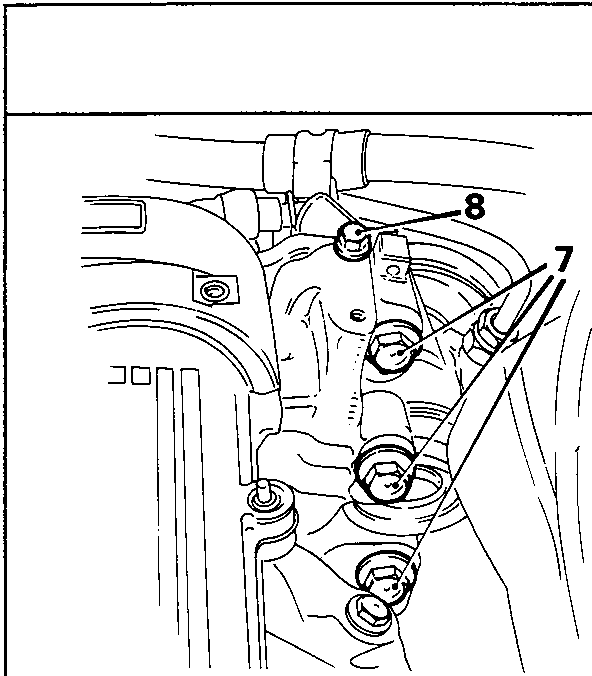

Diagram showing power steering pump mounting bracket with callout numbers 7 and 8
  1. Remove 3 bolts, power steering pump to mounting bracket.
  2. Remove power steering pump adjustment bolt.
  3. Release drive belt from pump pulley and move pump to one side.

CAUTION: Keep pump upright to avoid oil spillage.

  1. Remove camshaft cover.

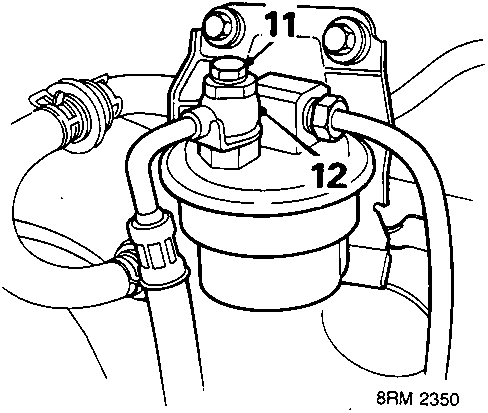

Diagram showing fuel filter assembly with callout numbers 11 and 12
  1. Position absorbent cloth around sealing bolt. Slacken bolt to relieve fuel pressure. Retighten bolt to 12 Nm.
  2. Disconnect banjo union from fuel filter, collect 2 sealing washers.

CAUTION: Plug the connections.

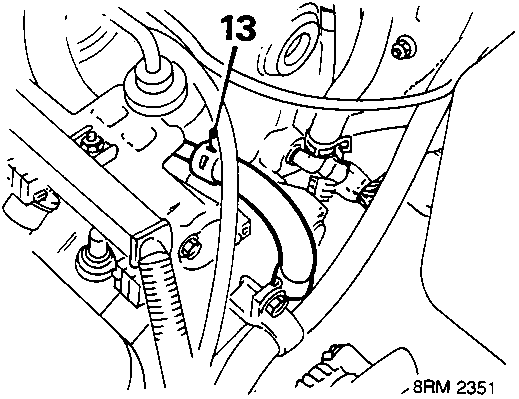

Diagram showing fuel rail connection with callout number 13
  1. Disconnect fuel return hose from fuel rail.

CAUTION: Plug the connections.

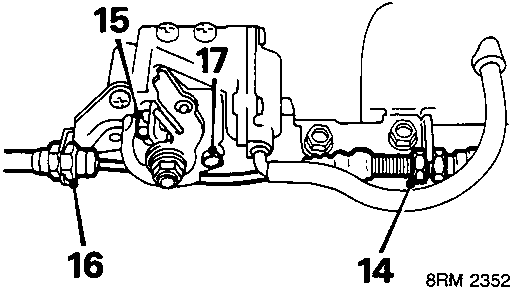

Diagram showing throttle cable linkage with callout numbers 14, 15, 16, and 17
  1. Slacken throttle cable locknut.
  2. Slide end of throttle cable out of bracket and throttle linkage.
  3. Automatic gearbox: Slacken nut on throttle control cable.
  4. Automatic gearbox: Release throttle control cable at lever.

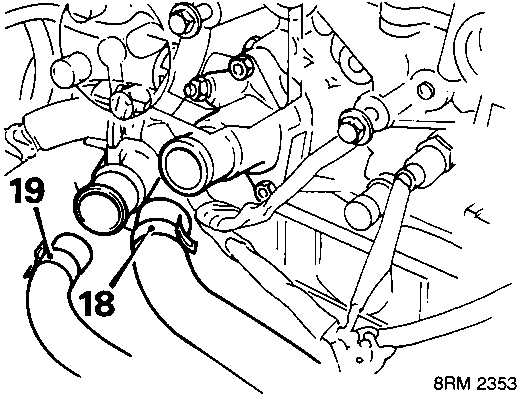

Diagram showing hoses connected to cylinder head with callout numbers 18 and 19
  1. Slacken clip, disconnect top hose from cylinder head.
  2. Slacken clip, disconnect heater hose from cylinder head.
