Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual06 · Engine 1.6 D.O.H.C.
06 · Engine

8RM 2329 (page 5 of 6)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Engine 1.6 D.O.H.C.8RM 2329 · page 5 of 6

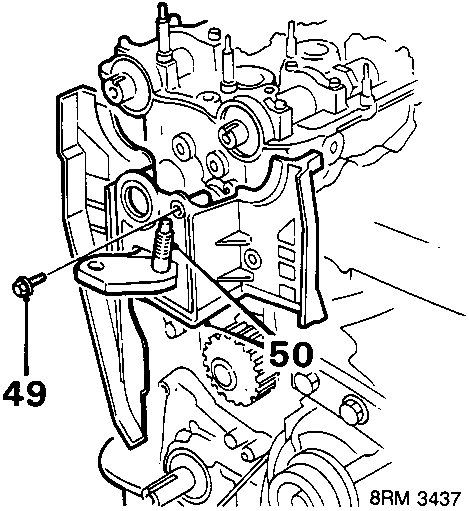

Diagram showing timing belt rear cover with callout numbers 49 and 50
  1. Remove bolt, timing belt rear cover to cylinder head.
  2. Ease rear cover along mounting bracket and position against stud.

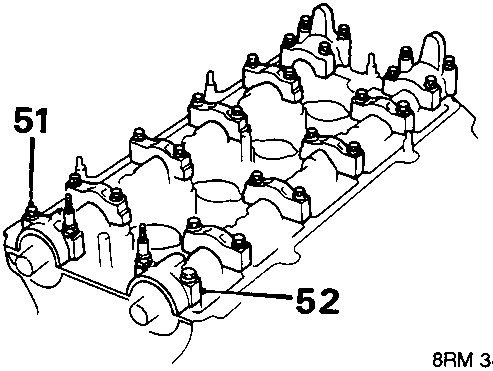

Diagram of camshaft bearing holders on cylinder head with callout numbers 51 and 52
  1. Progressively slacken 28 bolts securing camshaft bearing holders until tension is released and remove bolts.

Note: The inner bolts are longer than the outer bolts. The two stud bolts at the front retain the camshaft cover.

  1. Remove 12 camshaft bearing holders, retain in fitted order.

Note: Identification marks on bearing holders, 'I' inlet and 'E' exhaust.

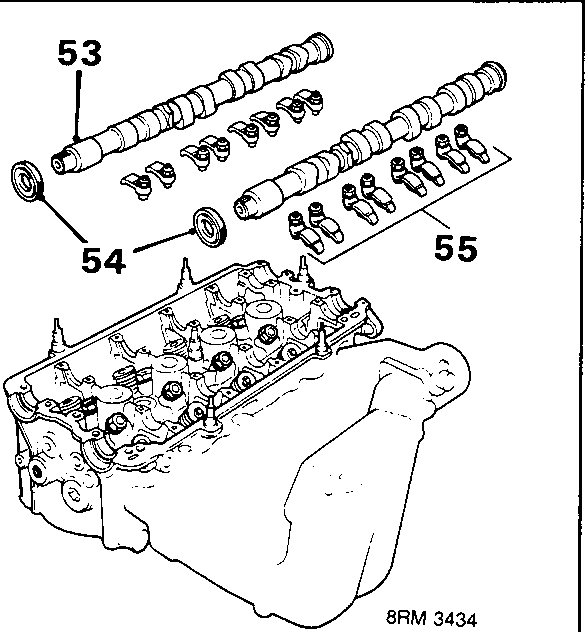

Exploded view of camshafts, oil seals and rocker arms with callout numbers 53, 54 and 55
  1. Lift out 2 camshafts.
  2. Discard oil seal from each camshaft.
  3. Remove 16 rocker arms, retain in fitted order.

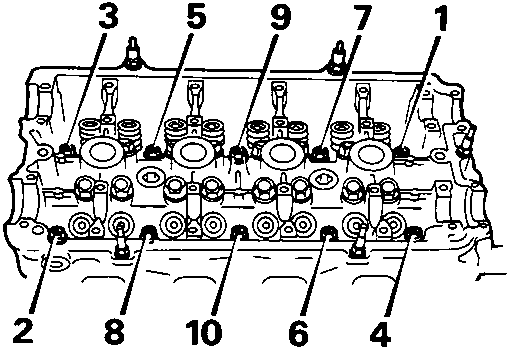

Cylinder head showing progressive tightening/slackening sequence for bolts numbered 1 through 10
  1. Working in the order shown, progressively slacken 10 cylinder head bolts.
