Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual06 · Engine 1.6 D.O.H.C.
06 · Engine

8RM 2329 (page 3 of 6)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
Engine 1.6 D.O.H.C.8RM 2329 · page 3 of 6

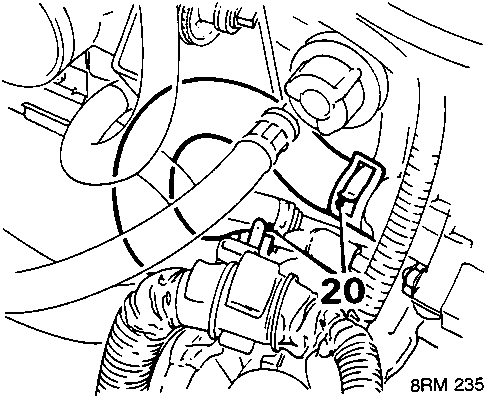

Diagram showing release of clips and disconnecting thermostat hose from inlet manifold, with callout number 20
  1. Release 2 clips, disconnect thermostat hose from inlet manifold.

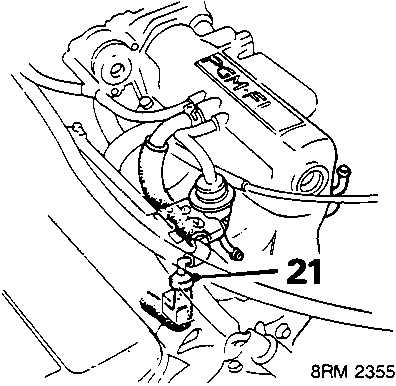

Diagram showing disconnecting and removing P.C.V. hose from inlet manifold, with callout number 21
  1. Disconnect and remove P.C.V. hose from inlet manifold.

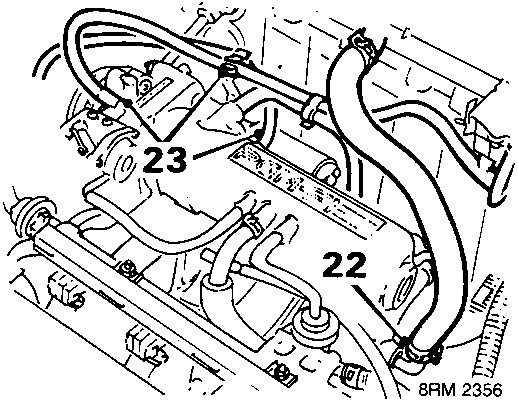

Diagram showing disconnecting brake servo vacuum hose and air cleaner/MAP sensor hoses from inlet manifold, with callout numbers 22 and 23
  1. Disconnect brake servo vacuum hose from pipe.
  2. Disconnect air cleaner and MAP sensor hoses from inlet manifold and release from clip.

CAUTION: Plug the connections.

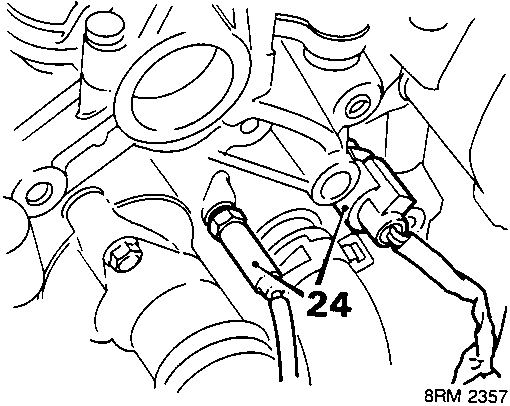

Diagram showing disconnecting coolant sensor plugs at cylinder head, with callout number 24
  1. Disconnect 2 coolant sensor plugs at cylinder head.

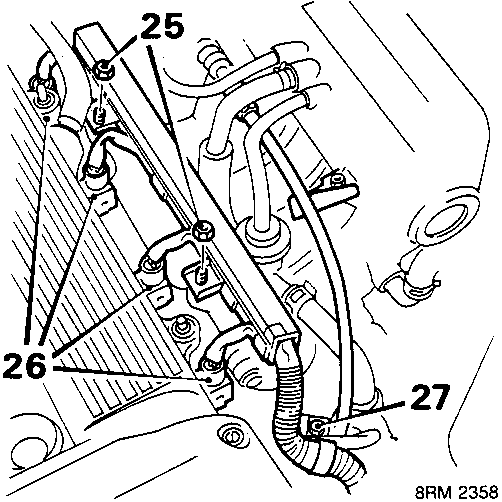

Diagram showing removal of nuts for harness cover, disconnecting multiplugs from injectors, and removing bolt for harness bracket, with callout numbers 25, 26, and 27
  1. Remove 2 nuts, harness cover to inlet manifold.
  2. Disconnect 4 multiplugs from injectors.
  3. Remove bolt, harness to bracket.

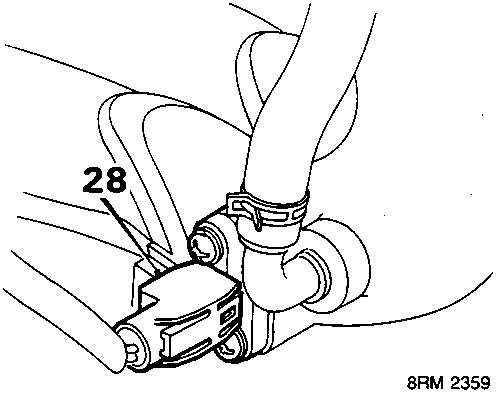

Diagram showing disconnecting T.A. sensor multiplug from inlet manifold, with callout number 28
  1. Disconnect T.A. sensor multiplug from inlet manifold.
