SteeringRefit
Figure

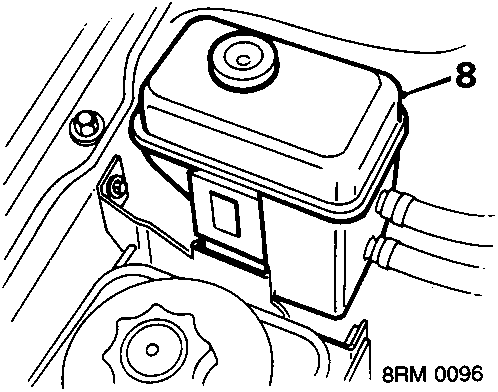

8RM 0096

  1. Remove reservoir from clip and place aside.
Figure

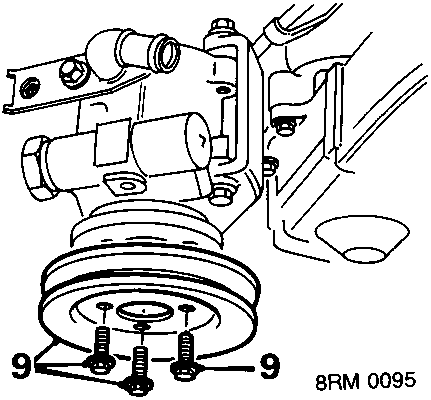

8RM 0095

  1. Remove 3 bolts securing pump pulley and remove pulley.
Figure

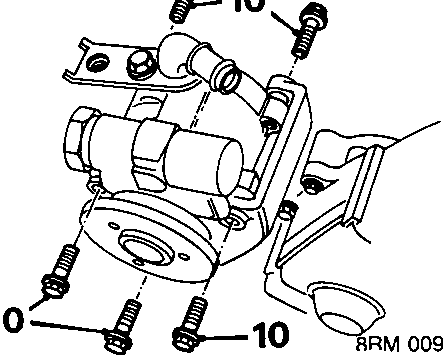

8RM 0093

  1. Remove 5 bolts securing pump and remove pump from bracket.

Refit

  1. Remove plugs from new pump and fit to old.
  2. Position pump to bracket, fit and tighten bolts to 25 Nm.
  3. Position pulley to pump, fit 3 bolts.
  4. Refit reservoir into clip.
  5. Remove plugs from hoses and "O" ring from outlet hose. Discard "O" ring.
Figure

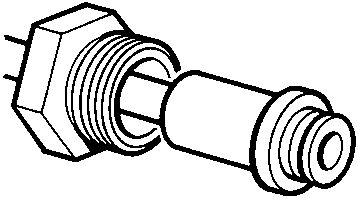

8RM 0094

  1. Lubricate and fit new "O" ring.
  2. Connect outlet hose to pump and tighten union to 55 Nm.
  3. Connect inlet hose, align and tighten clip.
  4. Remove drain tin.
  5. Fit and adjust power steering pump drive belt, see MAINTENANCE.
  6. Bleed system, see Adjustments.
  7. Remove stand(s) and lower vehicle.
  8. Tighten 3 pulley bolts to 9 Nm.

POWER STEERING PUMP – 1.6

Service Repair No. 57.20.14

Remove

  1. Remove power steering pump drive belt, see MAINTENANCE.
Figure

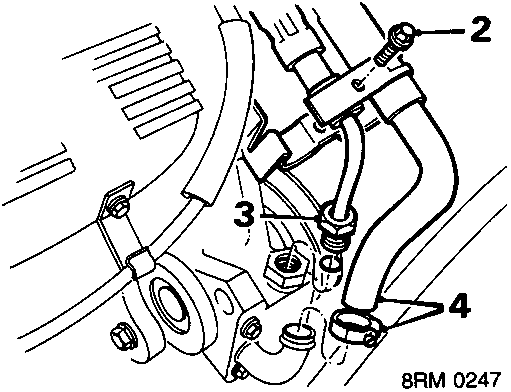

8RM 0247

  1. Remove bolt securing hose and pipe support bracket.
  2. Position drain tin and disconnect steering rack feed pipe union.
  3. Slacken clip securing pump feed hose and disconnect hose.
  4. Plug pipe and hose and move aside.
