Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual19 · Steering
19 · Steering & suspension

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
SteeringRemove · page 1 of 2

Service Repair No. 57.10.01

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).

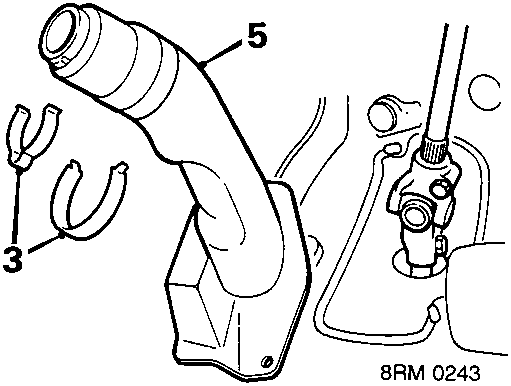

Diagram showing clips (3) and column universal joint cover (5)
  1. Remove 2 clips securing column universal joint cover.
  2. Pull back driver's footwell carpet.
  3. Remove studs securing column universal joint cover to floor and remove cover.

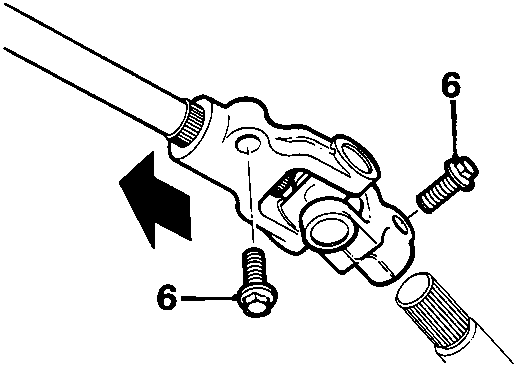

Diagram showing bolts (6) securing column universal joint
  1. Remove 2 bolts securing column universal joint and slide joint up column to disconnect joint from steering rack pinion shaft.

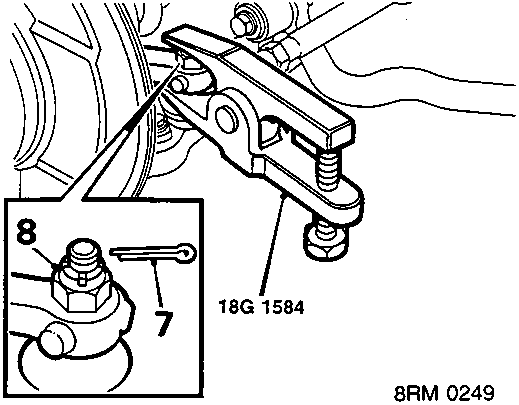

Diagram showing split pins (8), ball joint nuts (7) and tool 18G 1584 at track rod end
  1. Remove 2 split pins from track rod end ball joint nuts.
  2. Remove 2 ball joint nuts.
  3. Break taper joints using tool 18G 1584.

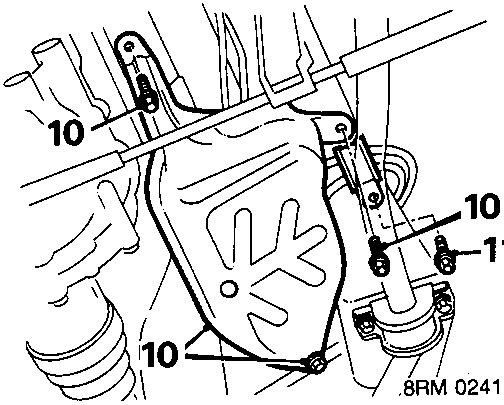

Diagram showing bolts (10) and clip (11) on steering rack pinion protection shield
  1. Remove 3 bolts from steering rack pinion protection shield under vehicle and remove shield.
  2. Remove bolt, power steering pipe clip to cross member.

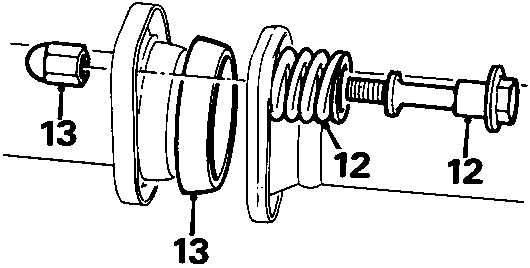

Diagram showing bolts (13), springs (12) and sealing ring on exhaust front pipe
  1. Remove 2 bolts, exhaust front pipe to catalytic converter and remove 2 springs.
  2. Collect nuts and sealing ring, discard nuts.
