Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual19 · Steering
19 · Steering & suspension

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
SteeringRemove

Service Repair No. 57.15.11

Remove

  1. Remove front bumper, see BODY – Repairs.
  2. Position container beneath power steering reservoir.

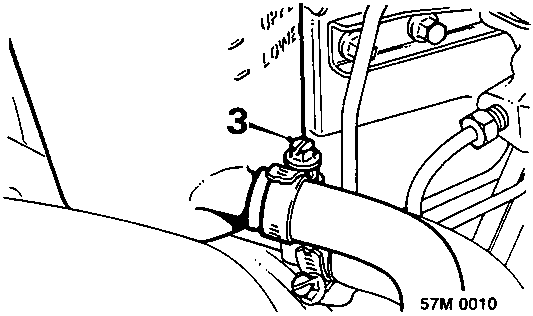

Diagram showing oil cooler hose connection to power steering reservoir with callout number 3
  1. Slacken clip, disconnect oil cooler hose from power steering reservoir.

CAUTION: Plug the connections.

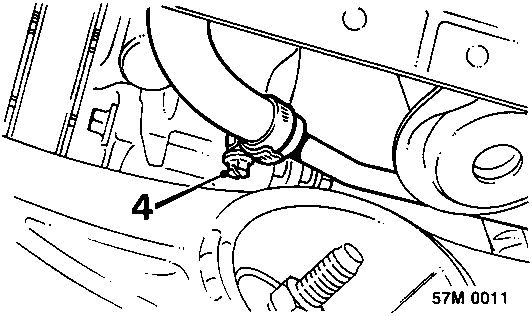

Diagram showing oil cooler hose connection to pipe with callout number 4
  1. Slacken clip, disconnect oil cooler hose from pipe.

CAUTION: Plug the connections.

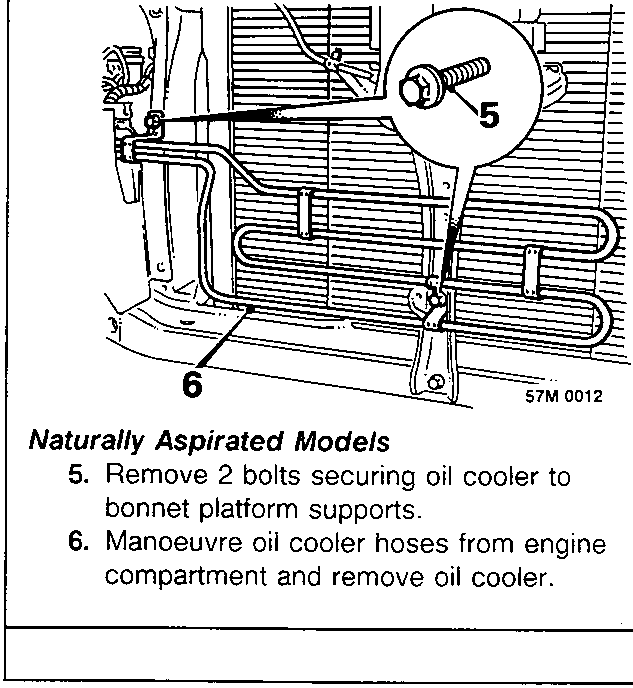

Diagram showing oil cooler mounting bolts and hoses with callout numbers 5 and 6

Naturally Aspirated Models

  1. Remove 2 bolts securing oil cooler to bonnet platform supports.
  2. Manoeuvre oil cooler hoses from engine compartment and remove oil cooler.

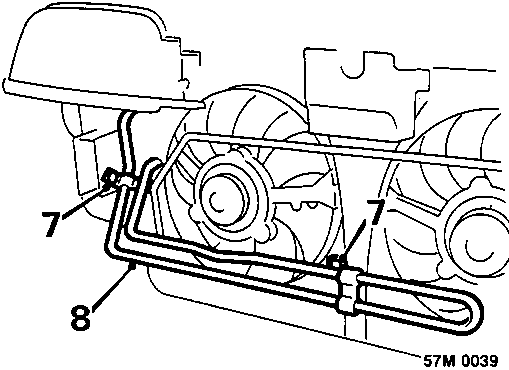

Diagram showing oil cooler clamps and hoses with callout numbers 7 and 8

Turbo & Coupe Models

  1. Remove 2 bolts securing oil cooler clamps to mounting brackets.
  2. Manoeuvre oil cooler hoses from engine compartment and remove oil cooler.

Refit

  1. Position oil cooler, manoeuvre oil cooler hoses through engine compartment.
  2. Fit oil cooler securing bolts and tighten to 9 Nm.
  3. Connect oil cooler hose to pipe; tighten clip.
  4. Connect oil cooler hose to power steering reservoir; tighten clip.
  5. Fit front bumper, see BODY – Repairs.
  6. Bleed power steering system, see Adjustments.
