Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual19 · Steering
19 · Steering & suspension

Refit

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Refit
SteeringRefit

All models

  1. Extend rack to passenger’s side as far as possible.
Diagram showing steering rack bracket bolts secured to crossmember, callout 21
  1. Remove 2 bolts securing steering rack bracket to crossmember on passenger’s side, remove bracket and mounting rubber.

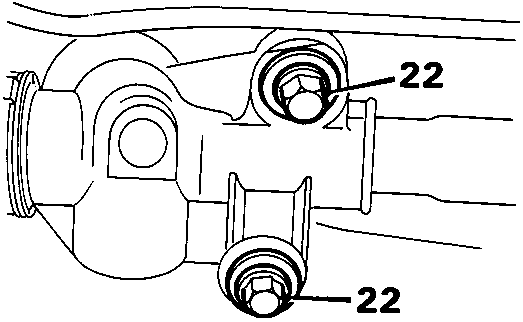

Diagram showing steering rack mounting bolts on crossmember, callout 22
  1. Remove bolts securing steering rack to crossmember, driver’s side.
  2. Release and turn steering rack to clear pinion from body.
  3. Move steering rack to passenger side of vehicle to clear track rod from crossmember manoeuvre and withdraw rack from driver’s side.
  4. Remove steering rack assembly.

Refit

  1. Rotate pinion to extend rack to passenger side.
  2. Position steering rack to vehicle.
  3. Feed rack in from driver’s side over exhaust and gear change rod far enough for track rod to clear crossmember feed rack back towards driver’s side and align and locate to crossmember.
  4. Fit bolts to driver’s side.
  5. Fit mounting rubber to passenger’s side, position bracket.
  6. Fit bolts to passenger’s side of steering rack and tighten to 42 Nm.
  7. Tighten steering rack bolts, drivers side to 42 Nm.
  8. Centralise rack.

Automatic transmission only

  1. Align gear selector cable to transmission.
  2. Wipe cable clamp and mating face.
  3. Fit clamp securing cable to gearbox.
  4. Fit and tighten selector cable bolt to 15 Nm.
  5. Align selector cable bracket to crossmember.
  6. Fit and tighten selector cable bracket bolt to 9 Nm.

Manual transmission only

  1. Connect steady rod to transmission , fit and tighten bolt to 45 Nm.
  2. Connect gear selector rod and secure with roll pin and clip.

All models

  1. Raise exhaust and connect centre mounting, tighten nuts to 22Nm.
  2. Align front pipe to catalytic converter, fit springs to bolts, fit new nuts and tighten to 22 Nm
  3. Align intermediate pipe to front pipe and fit joint springs.
  4. Fit and tighten exhaust pipe joint bolts to 48 Nm.
  5. Fit steering rack pinion shield and tighten bolts to 9 Nm.
  6. Connect track rod ends to steering armsand fit and tighten nuts to 45 Nm.
  7. Fit new split pins.
  8. Align steering to straight ahead position and connect column universal joint to pinion.
  9. Fit and tighten universal joint bolts to 30 Nm.
  10. Position universal joint cover and fit cover retaining clips and studs.
  11. Position footwell carpet.
  12. Fit road wheel and tighten nuts to 100 Nm.
  13. Remove stand(s) and lower vehicle.
  14. Check and adjust front wheel alignment, see Adjustments.
