19 · Steering & suspension

Refit

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Refit
SteeringRefit

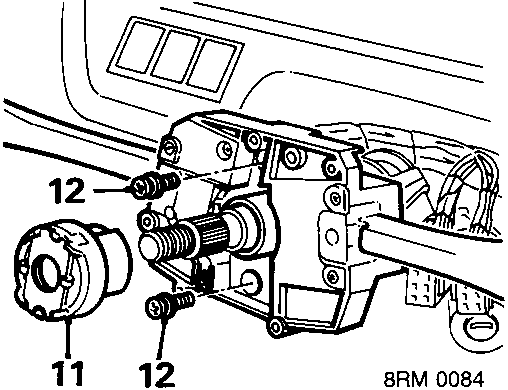

Diagram of steering column switch assembly showing parts 11 and 12
  1. Remove indicator cancelling cam.
  2. Remove 2 screws securing indicator and wiper switch assembly and remove switch assembly.

Refit

  1. Fit switch assembly and tighten screws.
  2. Connect indicator and wiper multiplugs.
  3. Position upper and lower sections of nacelle and fit screws.
  4. Fit snap ring.
  5. Fit ignition key.
  6. Position fuse box cover and fit and tighten screws.
  7. Connect horn push feed and earth lead to steering wheel.
  8. Align indicator cancelling ring and fit steering wheel.
  9. Fit and tighten steering wheel nut to 52 Nm.
  10. Press horn push into steering wheel.

STEERING COLUMN ASSEMBLY *

Note: On models fitted with Supplementary Restraint System Airbags, see SUPPLEMENTARY RESTRAINT SYSTEM – Repairs.

Service Repair No.
Steering column – 57.40.01
Column inner – 57.40.06

Remove

  1. Remove steering wheel, nacelle and column switches.

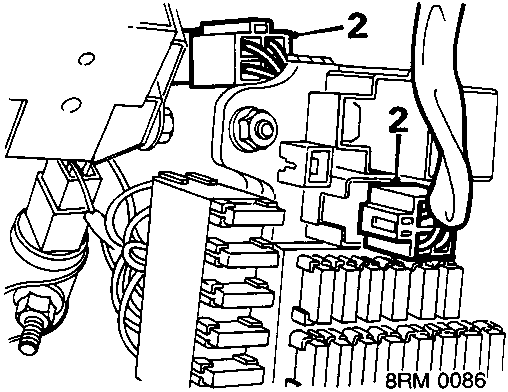

Diagram of steering column wiring connectors labeled 2
  1. Disconnect 2 ignition switch multiplugs.

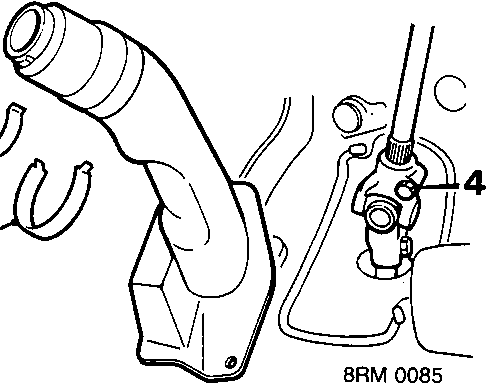

Diagram of universal joint cover area showing clips 3 and bolt 4
  1. Remove clips and studs securing universal joint cover and remove cover.
  2. Remove bolt securing universal joint to column.
