SteeringRemove

Service Repair No. 57.20.14

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Turbo: Remove intercooler, see MODULAR ENGINE MANAGEMENT SYSTEM – MPi – Repairs.
  2. Naturally aspirated: Remove air cleaner, see MODULAR ENGINE MANAGEMENT SYSTEM – MPi – Repairs.
  3. Drain cooling system, see MAINTENANCE.
  4. Remove alternator, see ELECTRICAL – Repairs.
  5. Support engine on trolley jack.

CAUTION: Use a block of wood or hard rubber pad to protect sump.

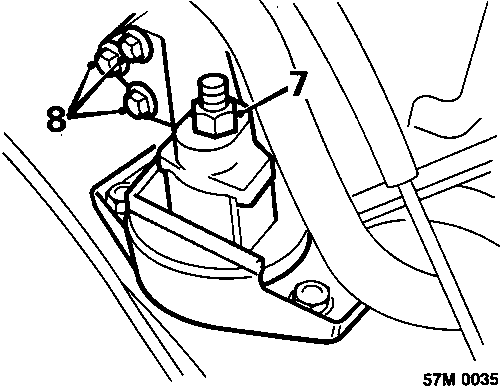

Diagram showing removal of nut and bolts securing engine RH mounting bracket to cylinder block
  1. Remove nut securing engine RH mounting to engine mounting bracket.
  2. Remove 3 bolts securing engine RH mounting bracket to cylinder block, remove bracket.

Non air conditioning

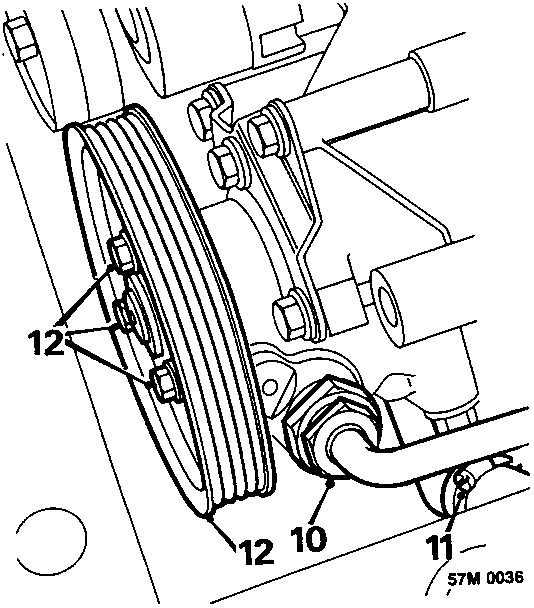

Diagram showing steering pump pulley, high pressure hose and feed hose connections for non air conditioning models

Air conditioning

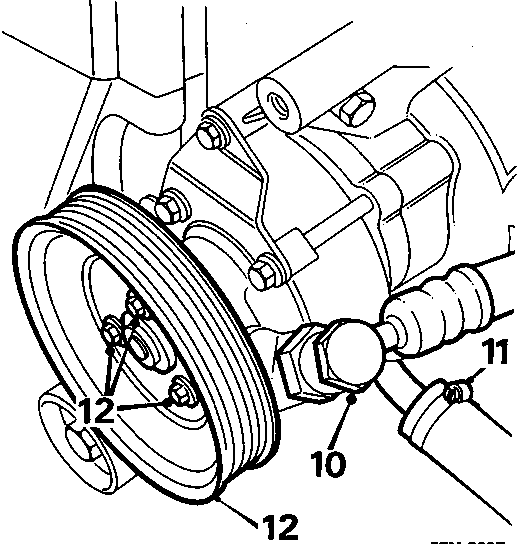

Diagram showing steering pump with AC compressor nearby, highlighting banjo bolt and feed hose clip locations
  1. Position container beneath steering pump.
  2. Remove banjo bolt securing high pressure hose to steering pump, discard 2 sealing washers.
  3. Slacken clip, disconnect feed hose from steering pump.

CAUTION: Plug the connections.

  1. Remove 3 bolts securing pulley to steering pump, remove pulley.

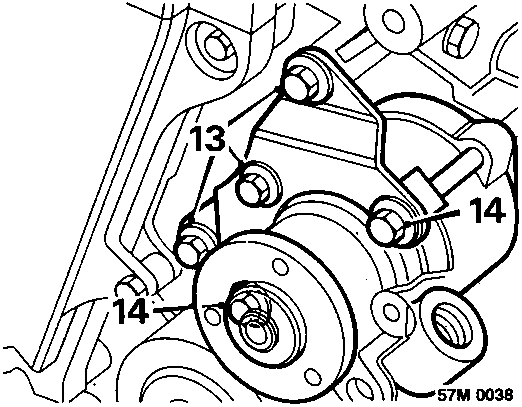

Diagram showing support bracket bolts securing steering pump to coolant pump housing
  1. Noting their fitted position, remove 3 short bolts securing support bracket to steering pump and coolant pump housing; collect 2 spacers.
  2. Unscrew but do not remove, 2 long bolts securing steering pump and support bracket to coolant pump housing.
  3. Release steering pump and support bracket from coolant pump housing,
  4. Remove the 2 long bolts and support bracket.
  5. Remove steering pump.
