Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual19 · Steering
19 · Steering & suspension

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
SteeringRemove

Service Repair No. 57.10.01

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
Figure

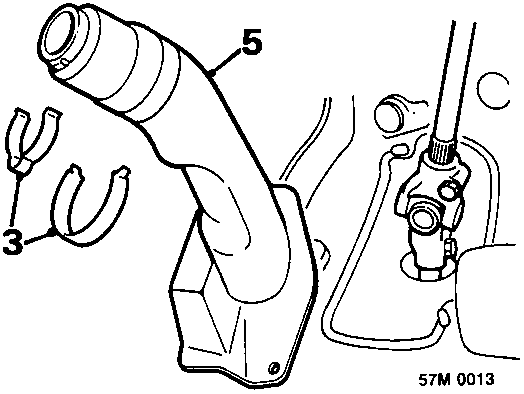

  1. Remove 2 clips securing steering column universal joint cover.
  2. Pull back driver’s footwell carpet.
  3. Remove 2 studs securing universal joint cover to floor; remove cover.
Figure

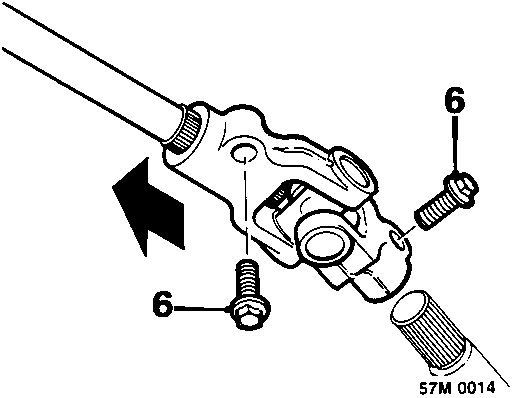

  1. Remove 2 bolts securing steering column universal joint, slide joint up column to disconnect joint from steering rack pinion shaft.
Figure

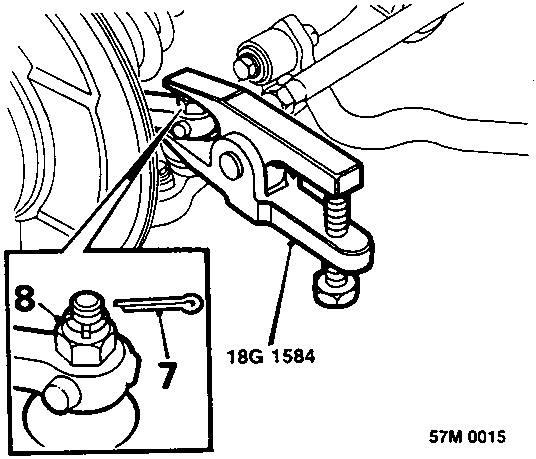

  1. Remove split pin from L.H. track rod end ball joint nut; discard split pin.
  2. Remove L.H. track rod end ball joint nut.
  3. Break taper joint using tool 18G 1584.
  4. Repeat operations 7 to 9 on R.H. track rod end ball joint.
  5. Remove exhaust front pipe, see MANIFOLD & EXHAUST – Repairs.
Figure
  1. Remove clip retaining selector rod roll pin.
  2. Using a suitable punch, drive out selector rod roll pin.
  3. Release selector rod from transmission.
  4. Remove bolt securing gear change steady bar, release bar; collect 2 washers.
Figure

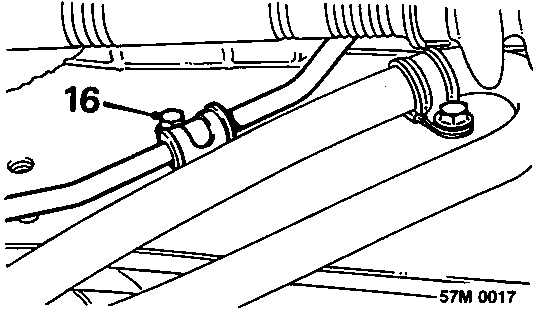

  1. Remove bolt securing power steering pipe clip to cross member.
  2. Position drain tin beneath steering rack pipe connections.
