Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual19 · Steering
19 · Steering & suspension

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
SteeringRemove · page 1 of 2

Service Repair No. 57.10.01

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove road wheel(s).
Diagram showing steering column universal joint cover with clips (3) and studs (5)
  1. Remove 2 clips securing column universal joint cover.
  2. Pull back driver's footwell carpet.
  3. Remove studs securing column universal joint cover to floor and remove cover.

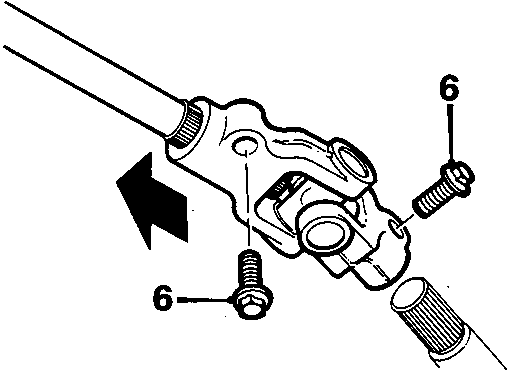

Diagram showing bolts (6) securing column universal joint and slide joint up column
  1. Remove 2 bolts securing column universal joint and slide joint up column to disconnect joint from steering rack pinion shaft.

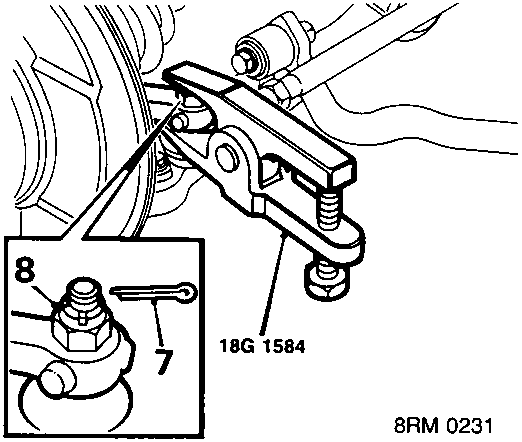

Diagram showing track rod end ball joint with split pins (7, 8) and tool 18G 1584
  1. Remove split pins from track rod end ball joint nuts.
  2. Remove 2 ball joint nuts.
  3. Break taper joints using tool 18G 1584.

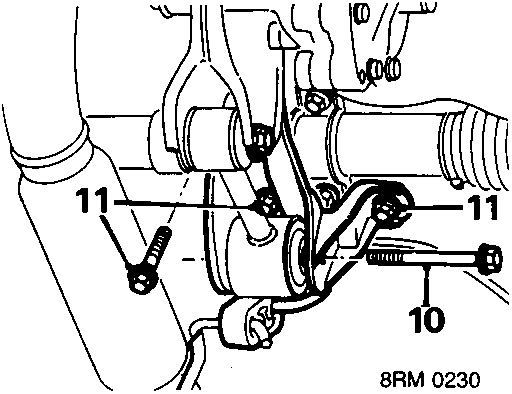

Diagram showing combined engine steady and exhaust mounting bracket with bolts (10, 11)
  1. Slacken bolt, engine steady rod to gearbox bracket, remove bolt release steady rod.
  2. Remove 3 bolts securing combined engine steady and exhaust mounting bracket to crossmember and remove bracket from exhaust mounting.

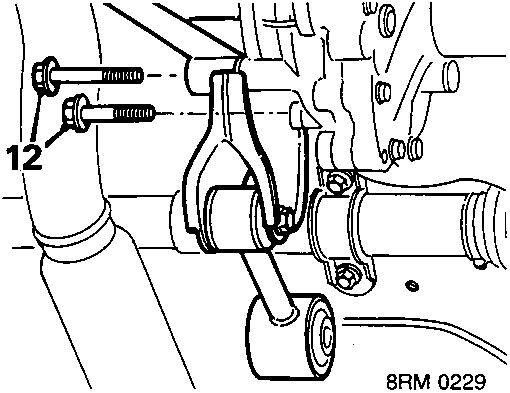

Diagram showing engine steady bracket bolts (12) securing to transmission
  1. Remove 2 bolts securing engine steady bracket to transmission and remove bracket.
