Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual19 · Steering
19 · Steering & suspension

Remove (page 2 of 2)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
SteeringRemove · page 2 of 2

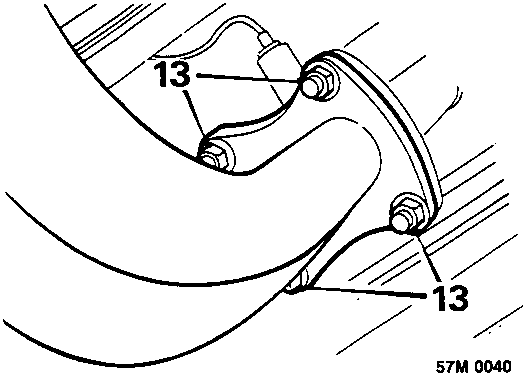

Diagram showing exhaust front pipe secured to manifold with four nuts indicated by callout 13
  1. Remove 4 nuts securing exhaust front pipe to manifold.

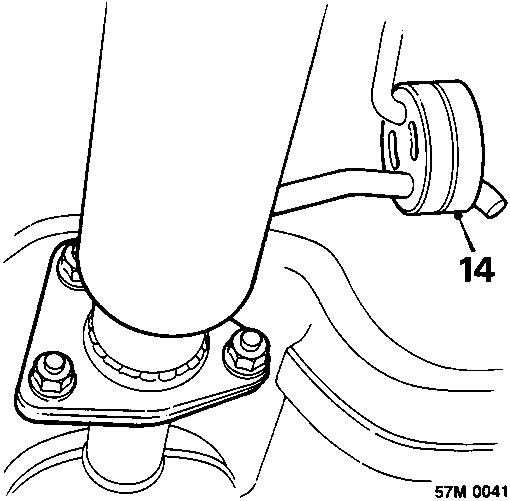

Diagram showing centre exhaust mounting flange and callout 14
  1. Disconnect centre exhaust mounting, lower exhaust and discard manifold flange gasket.

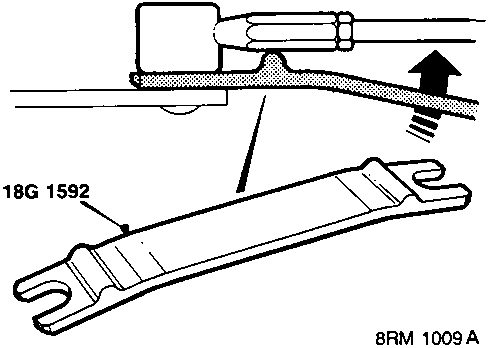

Diagram showing tool 18G 1592 being used to disconnect a ball joint from a gear change rod
  1. Taking care not to damage dust cover, disconnect lower gear change rod ball joint using tool 18G 1592.
  2. Lever down rear of power unit and insert block between differential case and crossmember to hold power unit down.

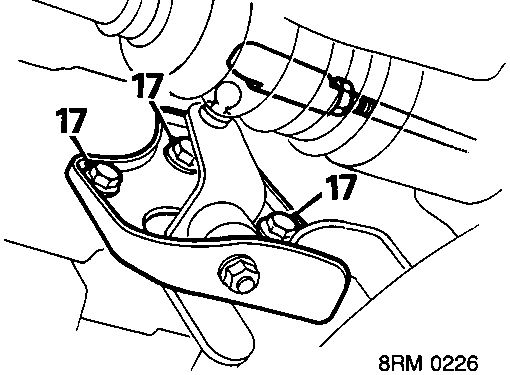

Diagram showing gear change linkage secured to cross member with three bolts indicated by callout 17
  1. Remove 3 bolts securing gear change linkage to cross member.

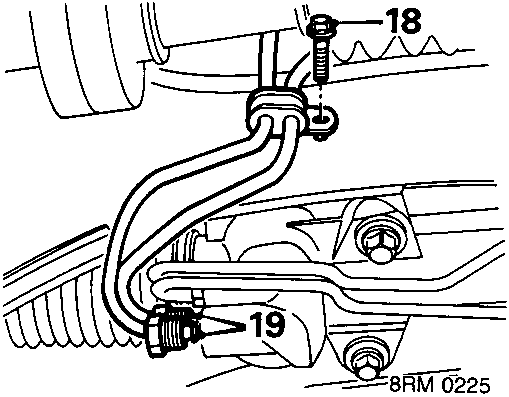

Diagram showing P.A.S. pipe clip bolt (18) and P.A.S. pipe unions (19) on the steering rack
  1. Remove bolt securing P.A.S. pipe clip to crossmember and position drain tin.
  2. Disconnect 2 P.A.S. pipe unions from rack, plug pipes.
  3. Extend rack to passenger side as far as possible.

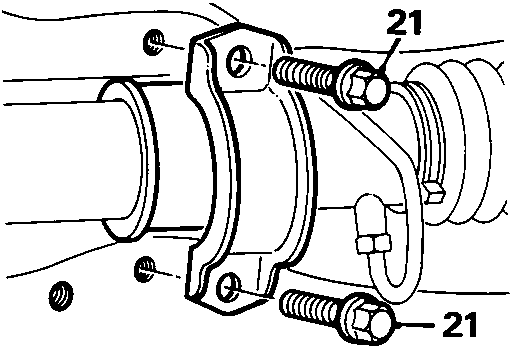

Diagram showing steering rack bracket secured to crossmember with two bolts indicated by callout 21
  1. Remove 2 bolts securing steering rack bracket to crossmember on passenger side, remove bracket and mounting rubber.
