Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual19 · Steering
19 · Steering & suspension

Remove

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs › Remove
SteeringRemove

Note: On models fitted with Supplementary Restraint System Airbags, see SUPPLEMENTARY RESTRAINT SYSTEM – Repairs.

Service Repair No.
Steering wheel – 57.60.01
Nacelle – 57.40.29
Column switch – 86.65.55

Remove

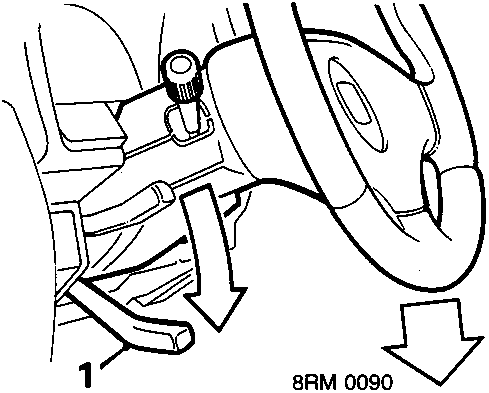

Diagram showing lowering the steering column and securing the adjusting lever
  1. Lower column and secure adjusting lever.

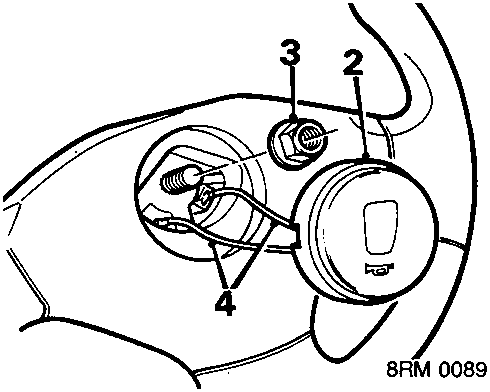

Diagram of steering wheel centre showing removal of horn push button, nut, and leads
  1. Carefully lever horn push from steering wheel centre.
  2. Remove nut, steering wheel to column and remove steering wheel.
  3. Release horn earth lead and feed lead from steering wheel.
  4. Remove horn push button.

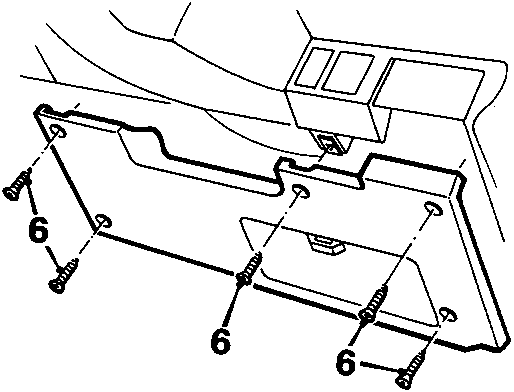

Diagram showing removal of screws securing the fuse box cover
  1. Remove 5 screws securing fuse box cover and remove cover.
  2. Remove ignition key.

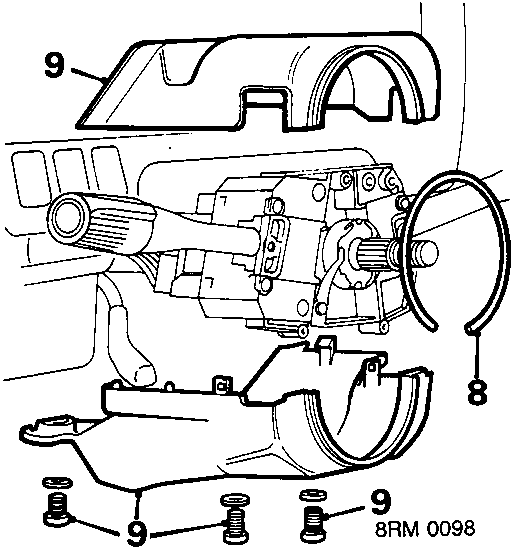

Diagram showing release of screws and removal of nacelle sections and snap ring
  1. Remove nacelle snap ring.
  2. Release 3 screws securing nacelle and remove upper and lower sections of nacelle.

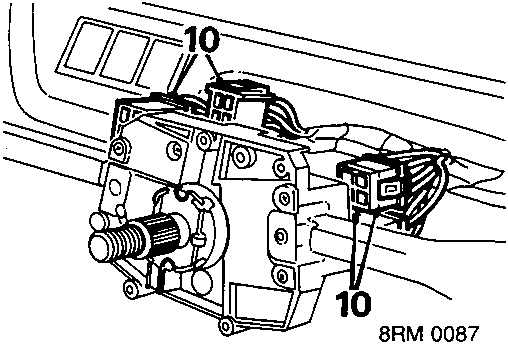

Diagram showing disconnecting indicator and wiper switch multiplugs
  1. Disconnect 4 indicator and wiper switch multiplugs.
