Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual19 · Steering
19 · Steering & suspension

Remove (page 2 of 2)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
SteeringRemove · page 2 of 2

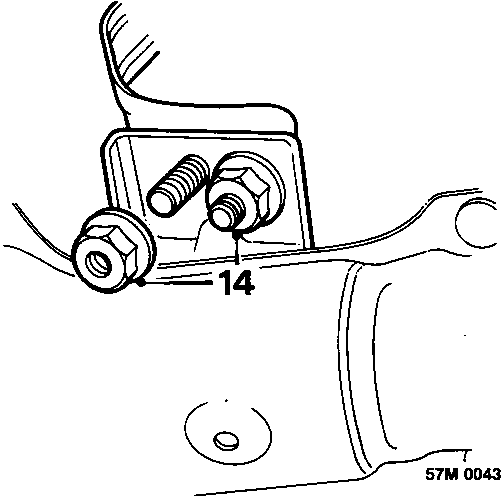

Diagram showing nuts securing front pipe to mounting bracket
  1. Remove 2 nuts securing front pipe to mounting bracket, lower exhaust.

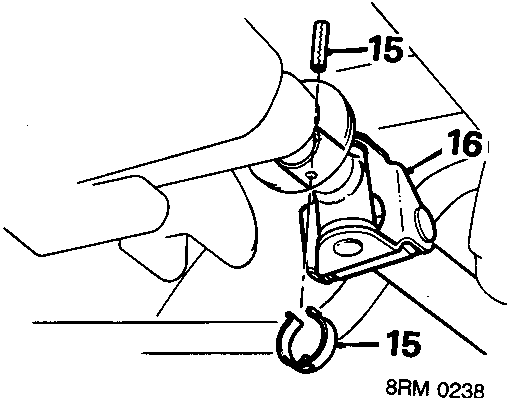

Diagram showing roll pin retaining clip and selector rod on manual transmission

Manual transmission only

  1. Remove roll pin retaining clip, remove roll pin from gear change selector rod.
  2. Disconnect selector rod from transmission.

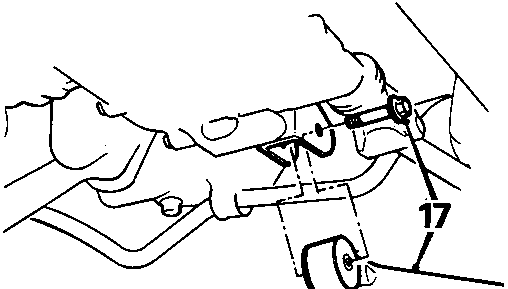

Diagram showing bolt securing steady rod to transmission
  1. Remove bolt securing steady rod and release steady rod from transmission.

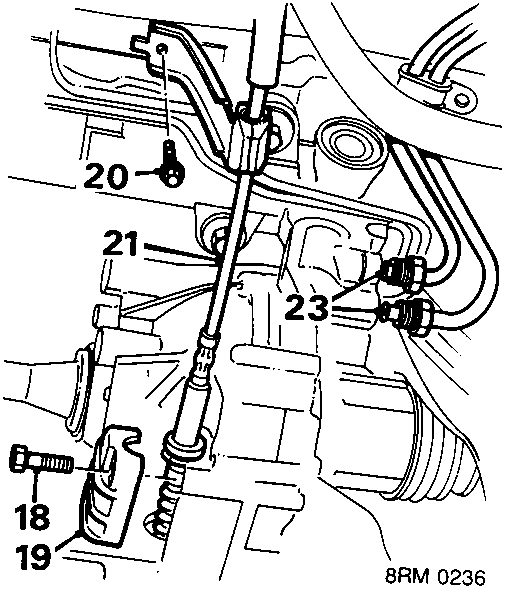

Diagram showing gearbox area with cable clamp, bolts and P.A.S. pipe unions

Automatic transmission only

  1. Remove bolt, gear selector cable clamp to gearbox.
  2. Remove cable clamp.
  3. Remove bolt gear selector cable bracket to crossmember.
  4. Release cable and pull fully rearwards.

All models

  1. Position drain tin under steering rack connections.
  2. Disconnect 2 P.A.S. pipe unions from rack and plug pipes.
  3. Extend rack to passenger's side as far as possible.
Diagram showing bolts securing steering rack bracket to crossmember
  1. Remove 2 bolts securing steering rack bracket to crossmember on passenger's side, remove bracket and mounting rubber.
