Rover 200/400 Coupé, Cabriolet & Tourer Workshop Manual20 · Suspension
20 · Steering & suspension

Front hub bearings (page 2 of 2)

Make
Rover
Model
Coupé, Cabriolet & Tourer 200/400 Coupé, Cabriolet & Tourer Workshop Manual
Section
Repairs
SuspensionFront hub bearings · page 2 of 2

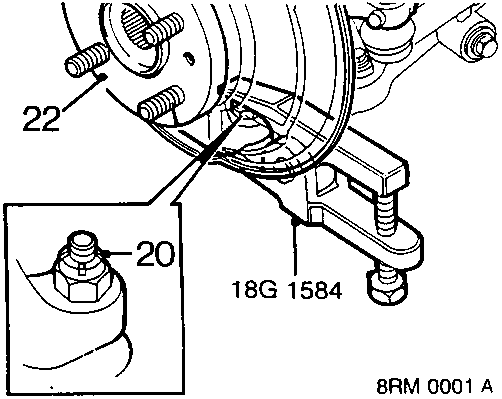

Diagram showing lower ball joint, split pin, nut, and tool 18G 1584
  1. Remove and discard split pin and remove nut from lower ball joint.
  2. Break taper joint using tool 18G 1584.
  3. Release hub from lower arm.

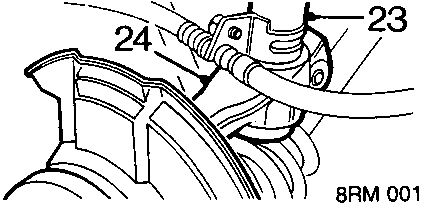

Diagram showing hub assembly connected to damper with callout numbers 23 and 24
  1. Disconnect hub from damper.
  2. Remove hub assembly.

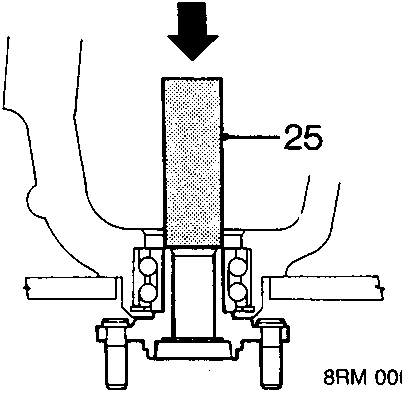

Diagram showing hub being pressed out of drive flange using a drift
  1. Position hub to press. Fit a suitable size drift to drive flange and press out drive flange.

Note: Part of bearing inner track will remain on drive flange.

  1. Remove hub from press.

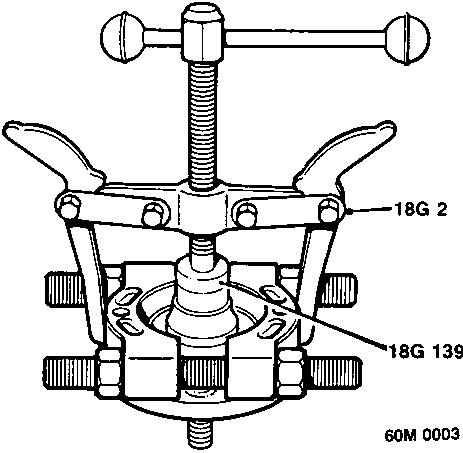

Diagram showing bearing separator tool 18G 2 and thrust pad 18G 1390 clamped around a bearing inner track on a drive flange
  1. Place drive flange in a vice. Clamp both halves of bearing separator around the bearing inner track ensuring that inner lip fits below track. Using tool 18G 2 and thrust pad 18G 1390 withdraw inner track from drive flange.

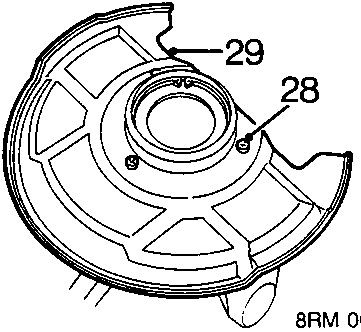

Diagram showing disc shield attached to hub with callout numbers 28 and 29
  1. Remove 3 screws from disc shield.
  2. Remove disc shield from hub.

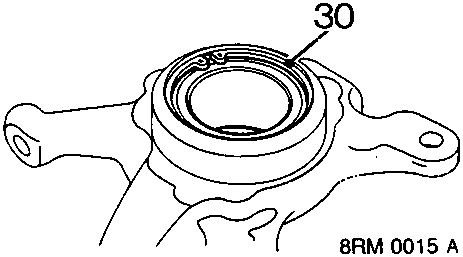

Diagram showing bearing circlip on hub with callout number 30
  1. Remove bearing circlip from hub.
  2. Position hub to press.
