Engine mechanics - 1.6L (LDE, LLU), 1.8L (2H0) (Turbocharger Removal): Repair Instructions

Make

Vauxhall

Model

Astra J

Section

Engine mechanics - 1.6L (LDE, LLU), 1.8L (2H0) › Repair Instructions › Turbocharger Removal

EngineTurbocharger Removal

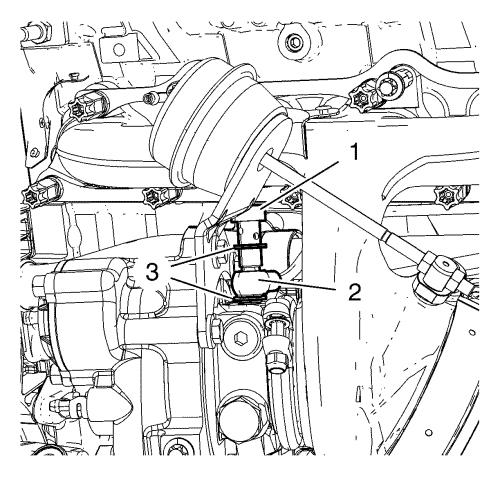

Turbocharger Removal Removal Procedure            1. Loosen the turbocharger oil feed pipe (2) from the turbocharger.   •  Remove the hollow bolt (1).   •  Remove and discard the 2 sealing rings (3).            2. Remove and DISCARD the 9 turbocharger nuts (1). 3. Remove and DISCARD the turbocharger washer (2). 4. Remove the turbocharger (4). 5. Remove and DISCARD the exhaust manifold gasket (3).
