145 electrical system diagnosisComponents and Connectors

Components and Connectors

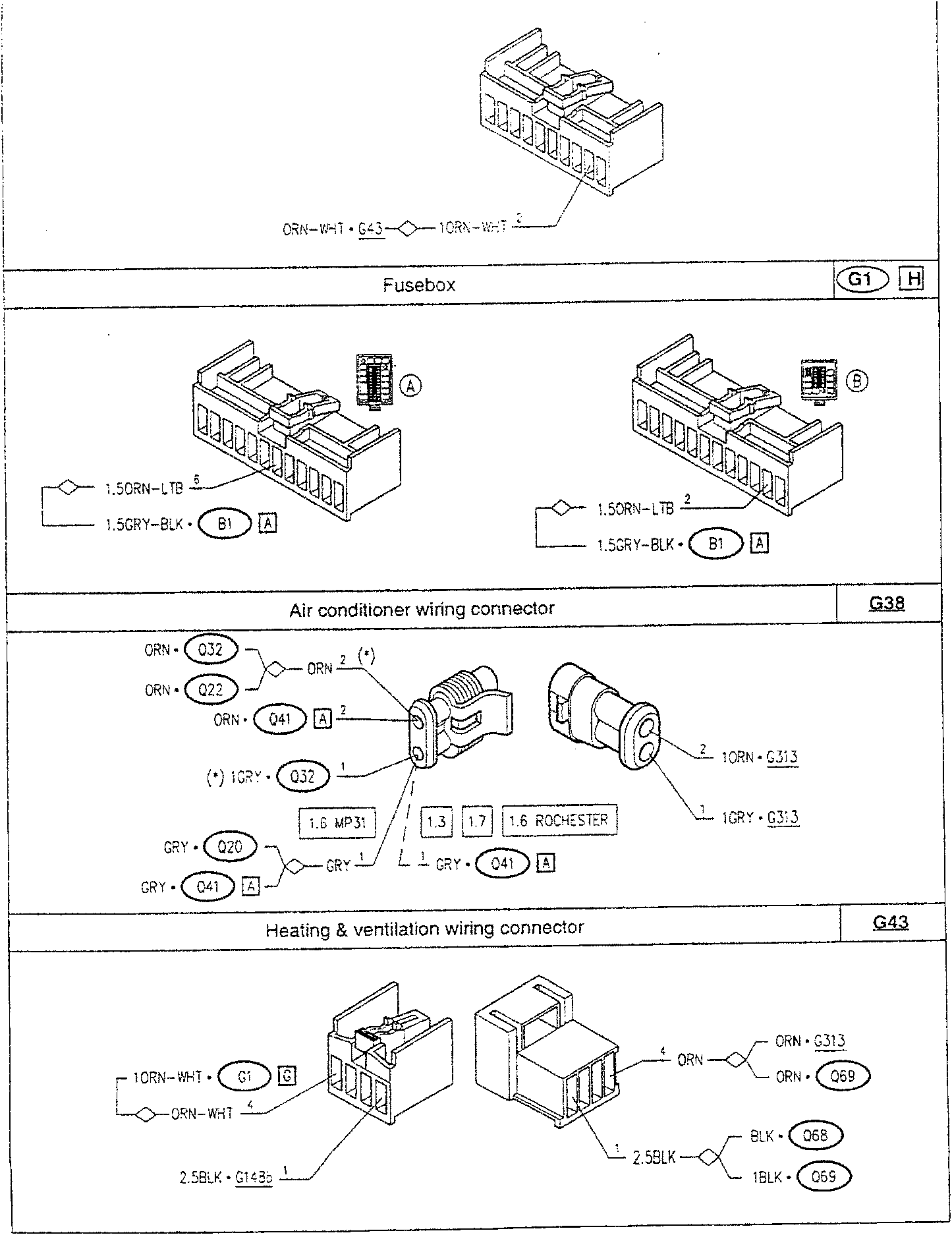

Fusebox diagram with wire connections labeled ORN-WHT • G43 and 1ORN-WHT 2

Fusebox

G1 G

Fusebox

G1 H

Two fusebox diagrams with wire connections labeled 1.5ORN-LTB 6, 1.5GRY-BLK • B1 A and 1.5ORN-LTB 2, 1.5GRY-BLK • B1 A

Air conditioner wiring connector

G38

Air conditioner wiring connector diagram with labeled wires ORN • Q32, ORN • Q22, GRY • Q20, GRY • Q41, 1ORN • G313, 1GRY • G313, and connectors 1.6 MP31, 1.3, 1.7, 1.6 ROCHESTER

Heating & ventilation wiring connector

G43

Heating & ventilation wiring connector diagram with labeled wires 1ORN-WHT • G1 G, ORN-WHT, 2.5BLK • G14B3, ORN • G313, ORN • Q69, 2.5BLK, 1BLK • Q69

(* ) from chassis no. 4065018
