Components and Connectors (contd.)
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Air Conditioner › Components and Connectors (contd.)
145 electrical system diagnosisComponents and Connectors (contd.)
Components and Connectors (contd.)

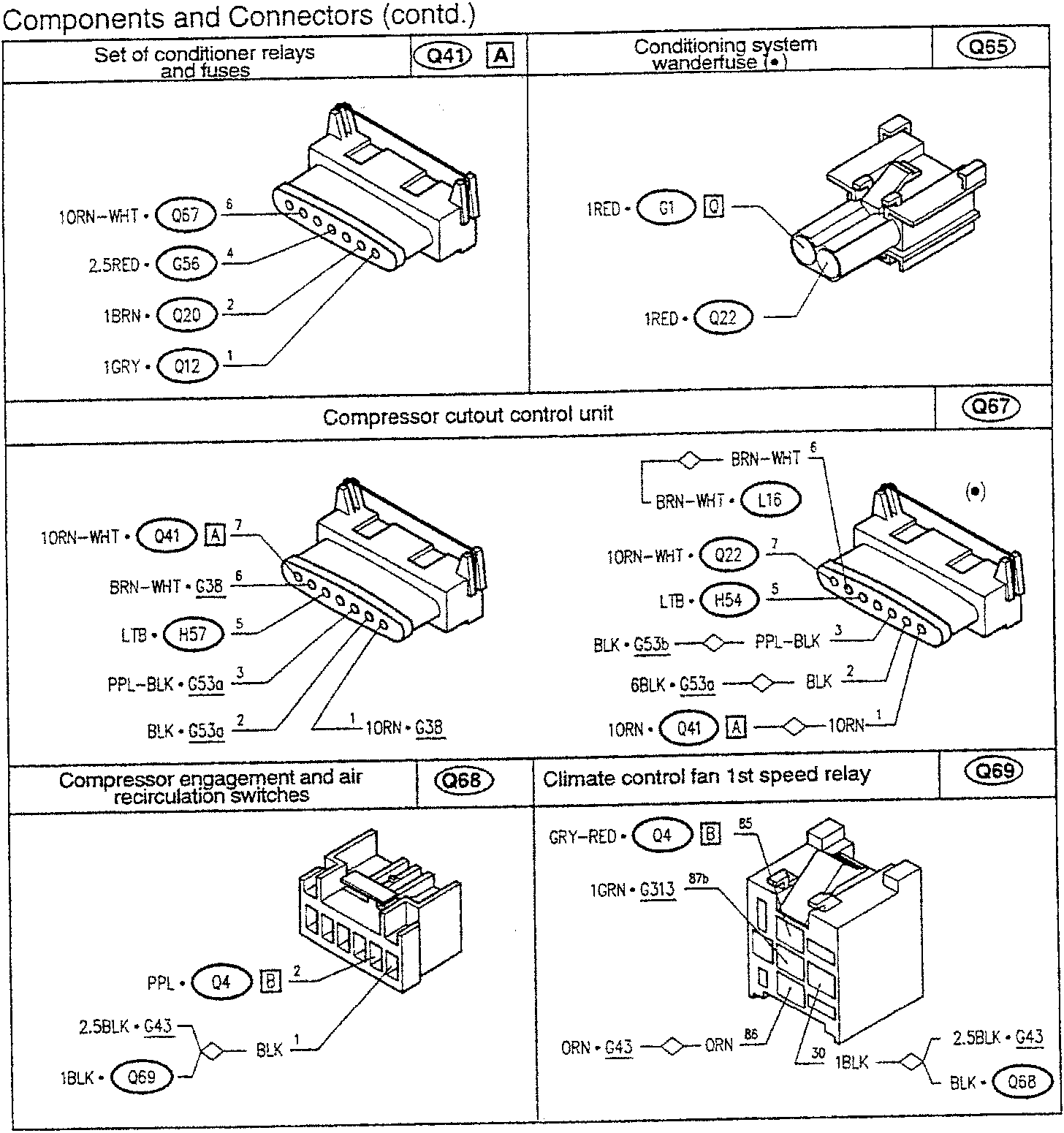

| Set of conditioner relays and fuses | Q41 A | Conditioning system wanderfuse (•) | Q65 |
|---|---|---|---|
|
1ORN-WHT • Q67 2.5RED • G56 1BRN • Q20 1GRY • Q12 |
1RED • G1 1RED • Q22 |
Compressor cutout control unit
| Compressor engagement and air recirculation switches | Q68 | Climate control fan 1st speed relay | Q69 |
|---|---|---|---|
| PPL • Q4 2.5BLK • G43 1BLK • Q69 |
GRY-RED • Q4 1CRN • G313 ORN • G43 2.5BLK • G43 1BLK • Q68 |
(•) Variant from chassis no....
