Air Conditioner › Components and Connectors (contd.)

145 electrical system diagnosisComponents and Connectors (contd.)

Components and Connectors (contd.)

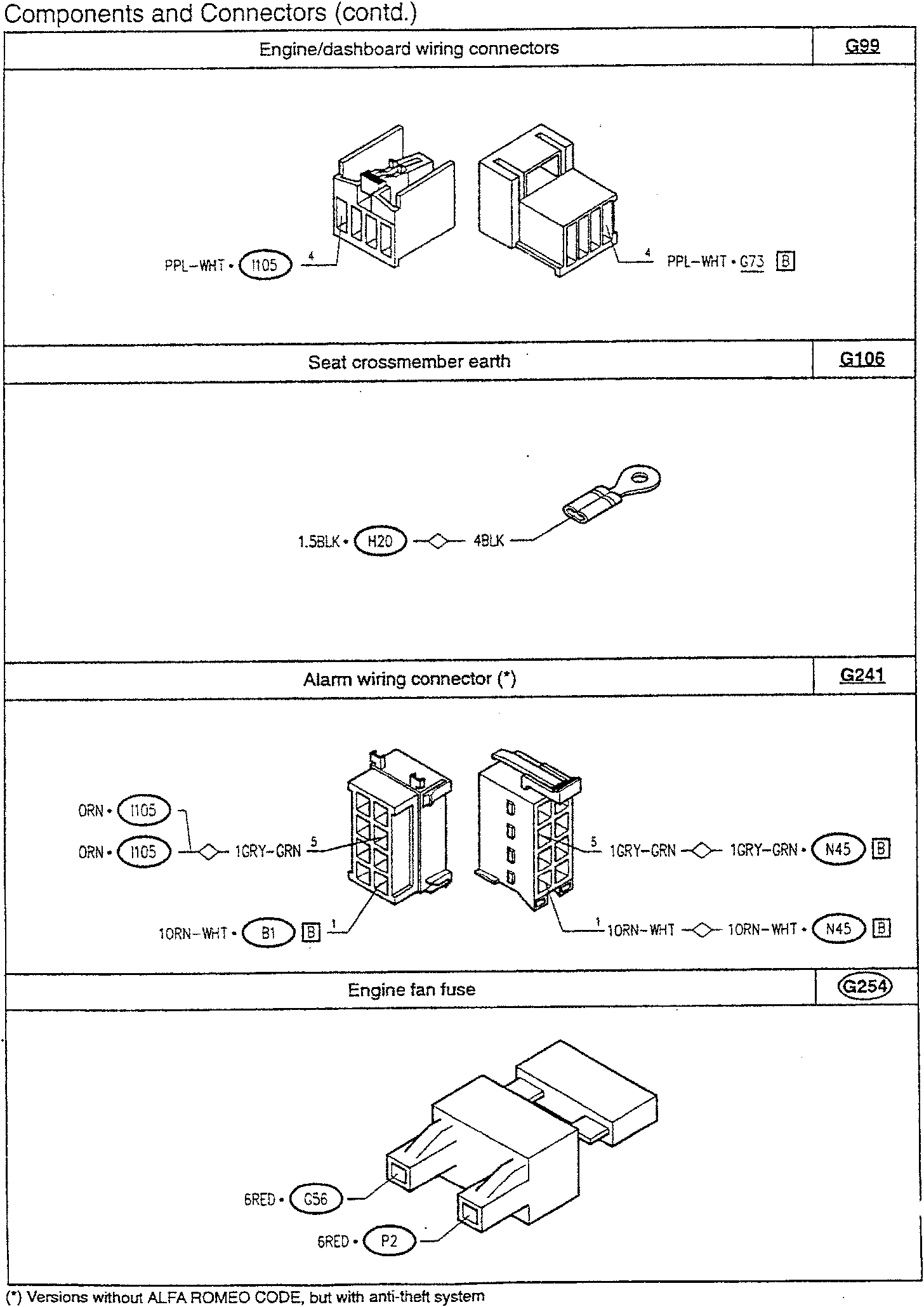

Engine/dashboard wiring connectors	G99
	PPL-WHT • I105 4 PPL-WHT • G73 B

Seat crossmember earth	G106
	1.5BLK • H20 4BLK

Alarm wiring connector (*)	G241
	ORN • I105 1GRY-GRN 5 1GRY-GRN • N45 B 10RN-WHT • B1 B 1 10RN-WHT • N45 B

Engine fan fuse	G254
	6RED • G56 6RED • P2

(*) Versions without ALFA ROMEO CODE, but with anti-theft system
