145 electrical system diagnosisCooling fan P2

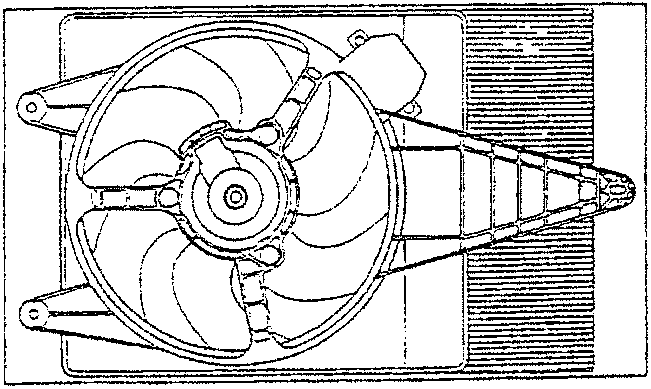

Cooling fan P2

SPECIFICATIONS
Nominal voltage	12V
Speed at 12V in free air in duct	2350 +150 rpm (minimum)
Motor direction of rotation (marked on duct)	right-hand (impeller side)

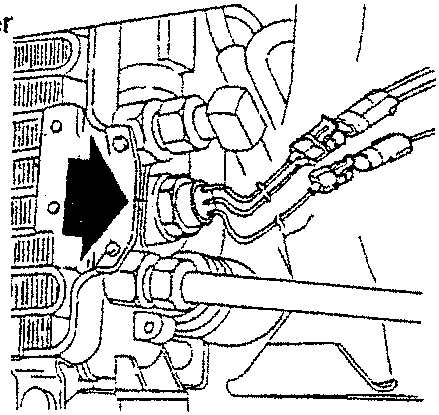

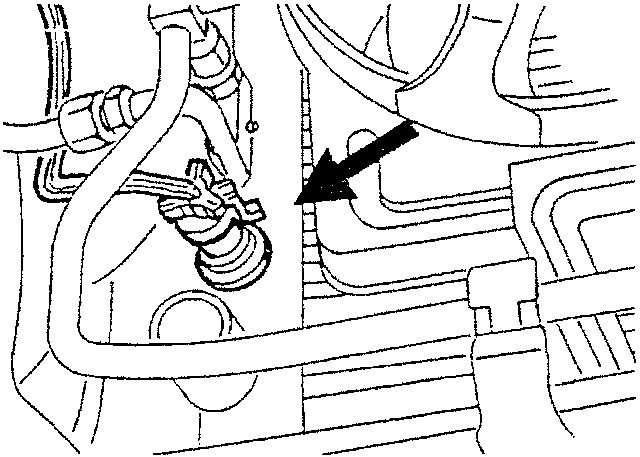

Fan two-level thermal contact L33

SPECIFICATIONS
Boxer and T.SPARK versions
1st level:		contact closes 92 ± 2 °C
		contact opens 87 ± 2 °C
2nd level:		contact closes 97 ± 2 °C
	contact opens 92 ± 2 °C
TD version
1st level:		contact closes 88 ± 2 °C
		contact opens 83 ± 2 °C
2nd level:		contact closes 92 ± 2 °C
	contact opens 87 ± 2 °C
