Components and Connectors (contd.)
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Air Conditioner › Components and Connectors (contd.)
145 electrical system diagnosisComponents and Connectors (contd.)
Components and Connectors (contd.)

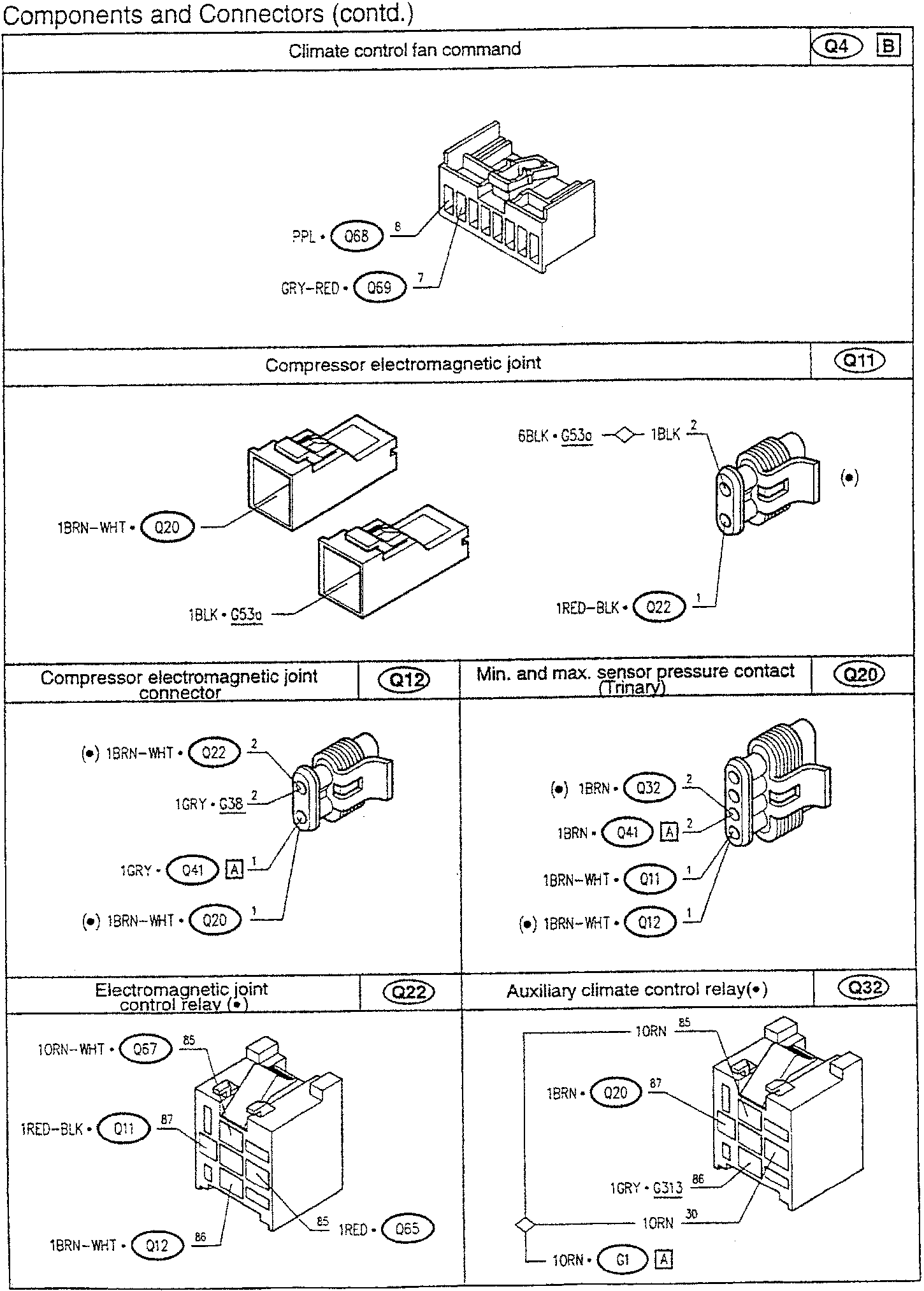

| Climate control fan command | Q4 B |
|---|---|
|
| Compressor electromagnetic joint | Q11 |
|---|---|
| Compressor electromagnetic joint connector | Q12 | Min. and max. sensor pressure contact (Trinary) | Q20 |
|---|---|---|---|
| Electromagnetic joint control relay (•) | Q22 | Auxiliary climate control relay(•) | Q32 |
|---|---|---|---|
(•) Variant from chassis no....
