Minimum pressure switch (antifros) Q9

Boxer T.SPARK

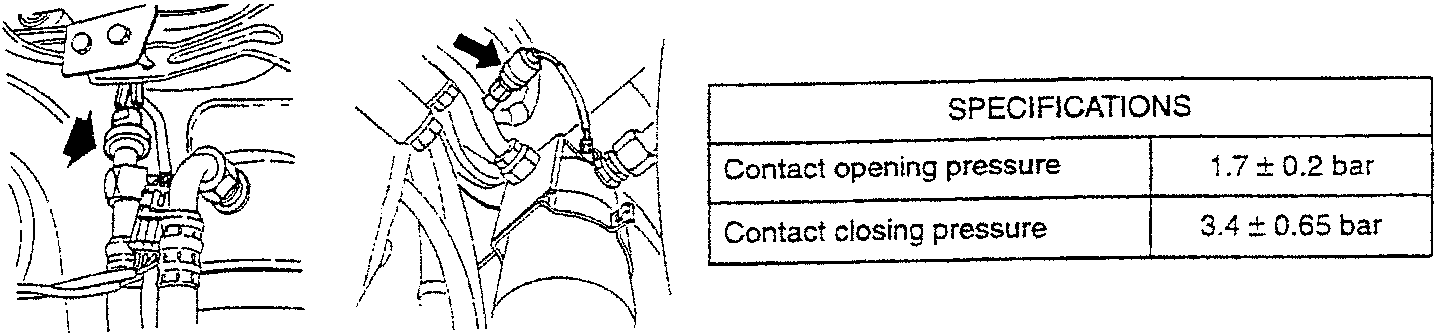

Illustration of minimum pressure switch with arrows indicating connection points
SPECIFICATIONS
Contact opening pressure1.7 ± 0.2 bar
Contact closing pressure3.4 ± 0.65 bar

Compressor cutoff thermal contact Q12

(for TD version only)

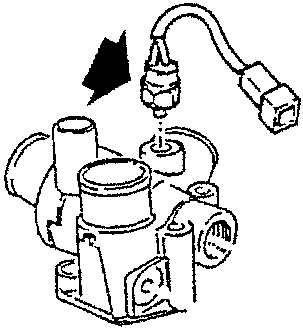

Illustration of compressor cutoff thermal contact with arrow indicating connection point
SPECIFICATIONS
contact opens111 ± 2 °C
contact closes106 ± 2 °C

Compressor disengagement control unit Q67

(for TD version only)

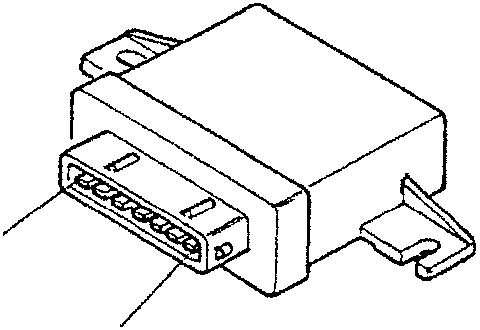

Illustration of compressor disengagement control unit with labeled pins
SPECIFICATIONS
Operating diagram:
Engine rpm (pin 6)Graph showing engine rpm increasing with time
Full load switch (pin 5)Graph showing ON/OFF switching pattern
Output voltage (pin 7)Graph showing 12V output with 8s intervals
