145 electrical system diagnosisComponents and Connectors

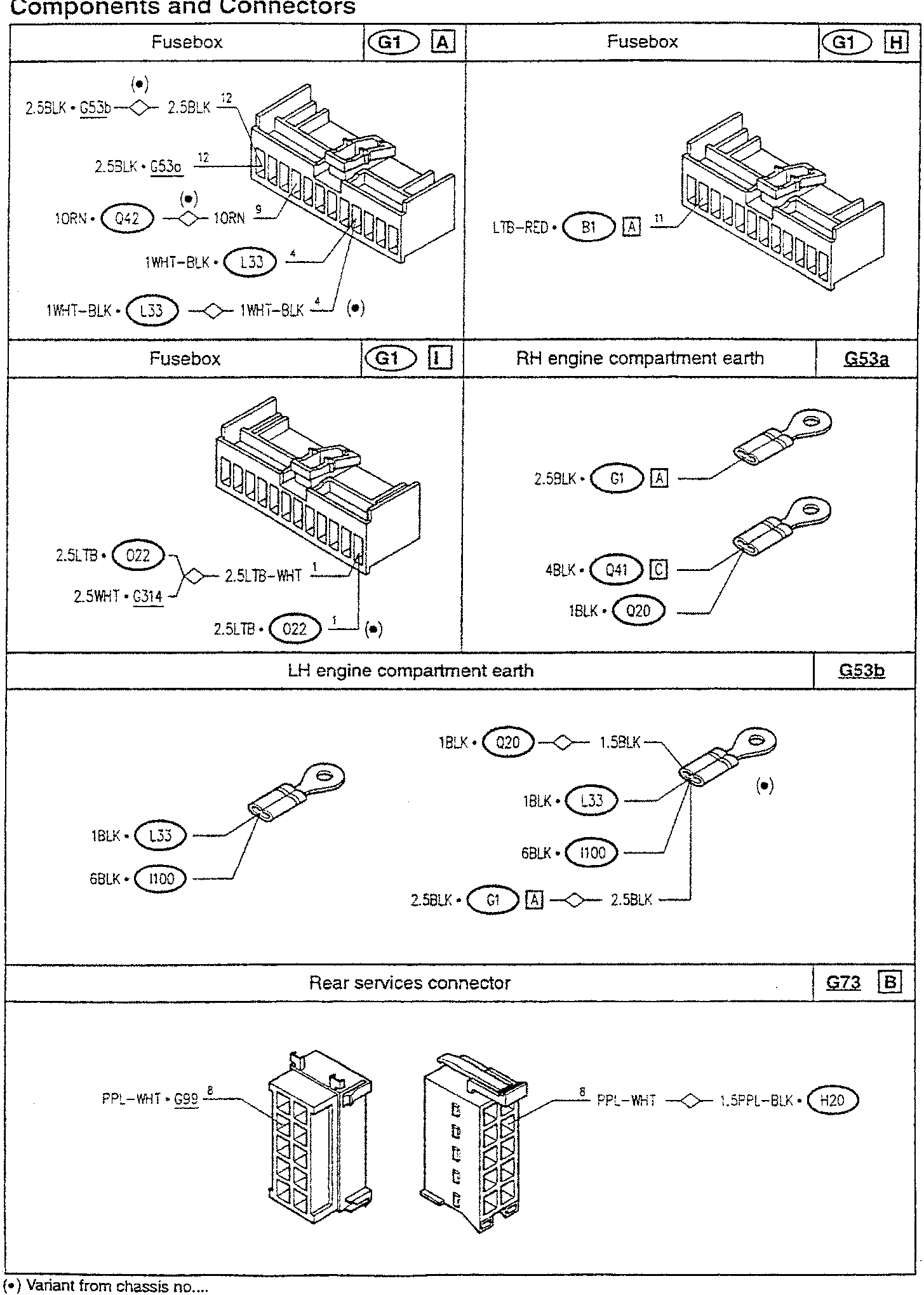

Components and Connectors

Fusebox	G1 A	Fusebox	G1 H
2.5BLK • G53b 2.5BLK 12 2.5BLK • G53a 12 10RN • Q42 1WHT-BLK • L33 1WHT-BLK • L33	1WHT-BLK 4 1WHT-BLK 4	LTB-RED • B1 A 11

Fusebox	G1 I	RH engine compartment earth	G53a
2.5LTB • O22 2.5WHT • G314 2.5LTB • O22	2.5LTB-WHT 1	2.5BLK • G1 A 4BLK • Q41 C 1BLK • Q20

LH engine compartment earth	G53b
1BLK • L33 6BLK • I100	1BLK • Q20 1.5BLK 1BLK • L33 6BLK • I100 2.5BLK • G1 A 2.5BLK

Rear services connector	G73 B
PPL-WHT • G99 8	PPL-WHT 6 1.5PPL-BLK • H20

(•) Variant from chassis no....
