Wiring diagram (T.SPARK version)
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Air Conditioner › Wiring diagram (T.SPARK version)
145 electrical system diagnosisWiring diagram (T.SPARK version)

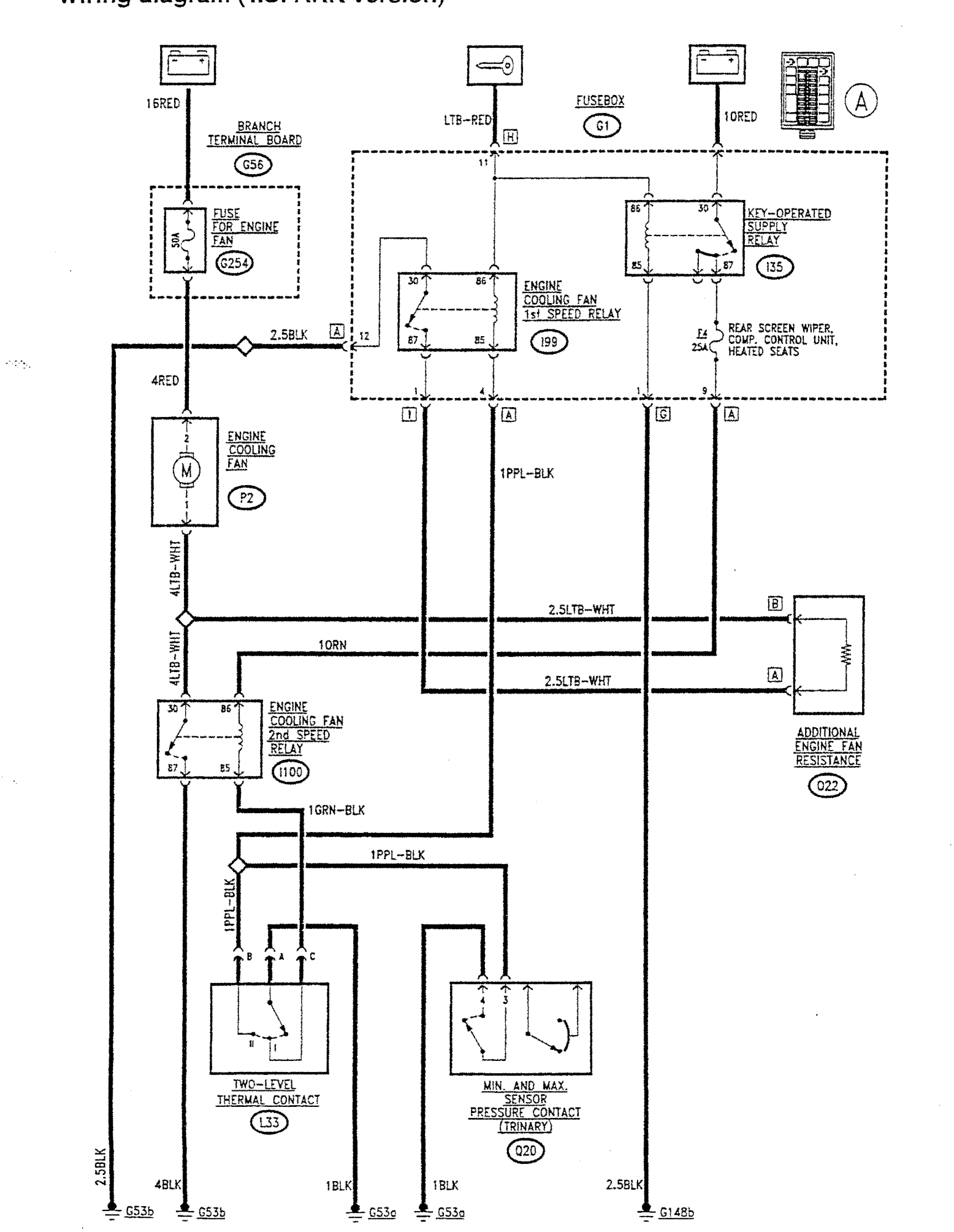

Wiring diagram (T.SPARK version) – diagram from the 145 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.
