Compressor connection
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Air Conditioner › Compressor connection
145 electrical system diagnosisCompressor connection · page 1 of 2
Compressor connection – diagram from the 145 electrical system diagnosis chapter of the Alfa Romeo 145/146 Electrical System Diagnosis Manual, Volume 3 (1994-2001) factory manual.
COMPRESSOR CONNECTION

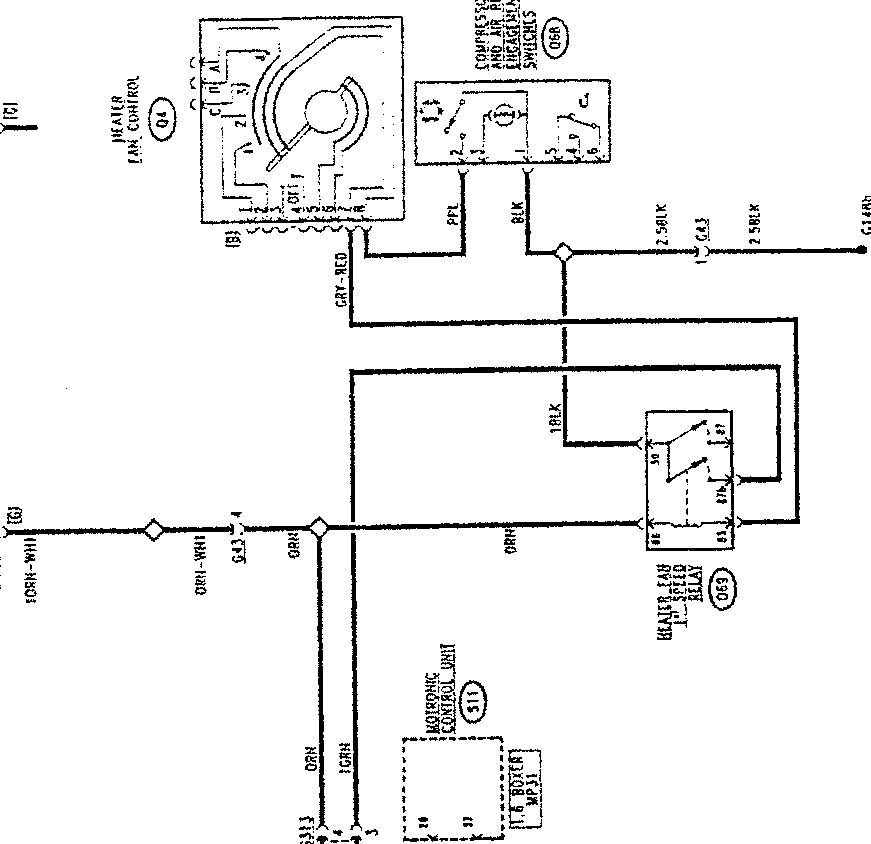

Wiring Diagram (Boxer version 1.6- MOTRONIC MP3.1)
