Components and Connectors
- Make
- Alfa Romeo
- Model
- 145/146 Electrical System Diagnosis Manual, Volume 3
- Year
- 1994–2001
- Section
- Air Conditioner › Components and Connectors
145 electrical system diagnosisComponents and Connectors

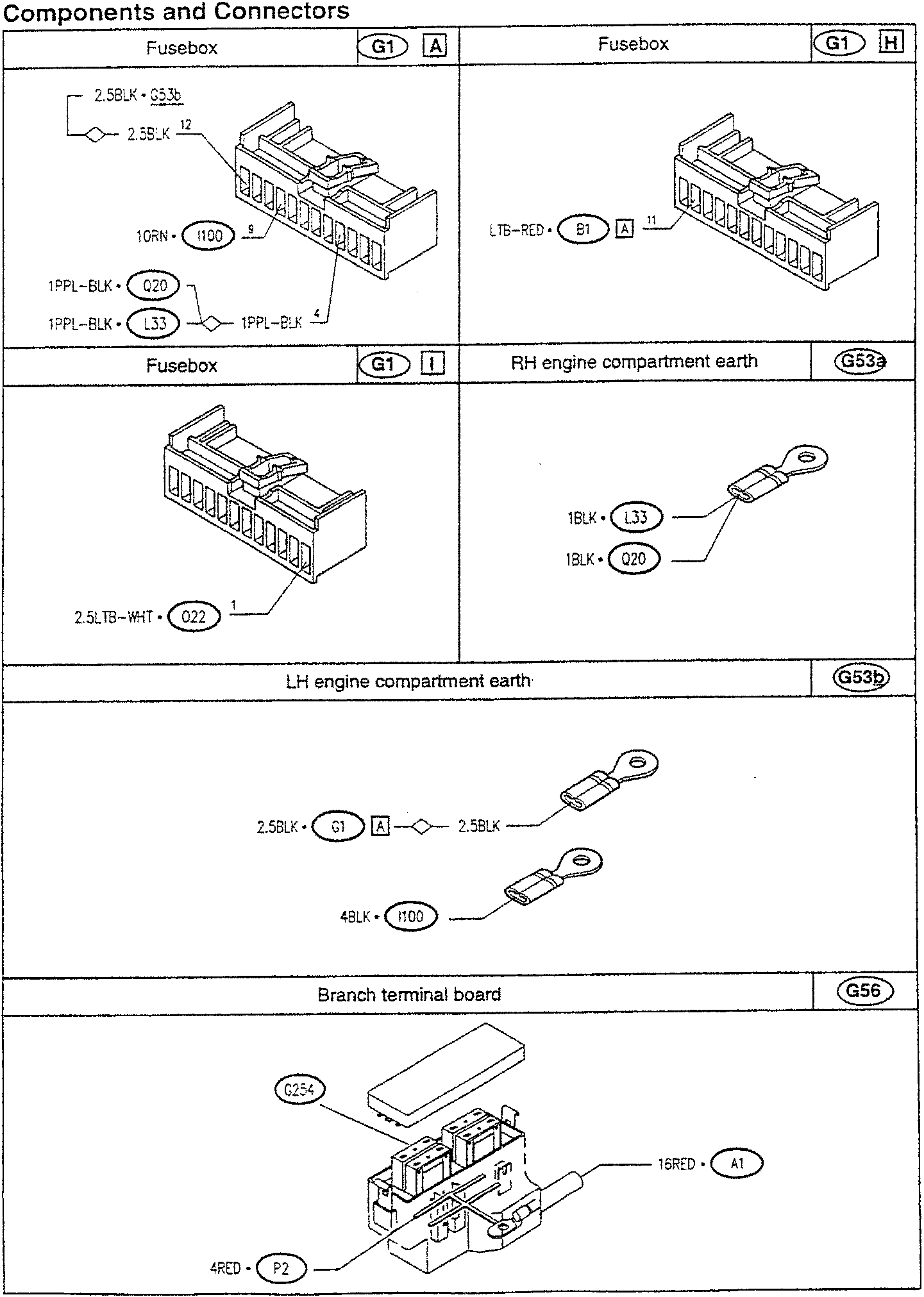

Components and Connectors
| Fusebox | G1 A | Fusebox | G1 H |
|---|---|---|---|
|
|||
| Fusebox | G1 I | RH engine compartment earth | G53a |
|---|---|---|---|
| LH engine compartment earth | G53b |
|---|---|
| Branch terminal board | G56 |
|---|---|
