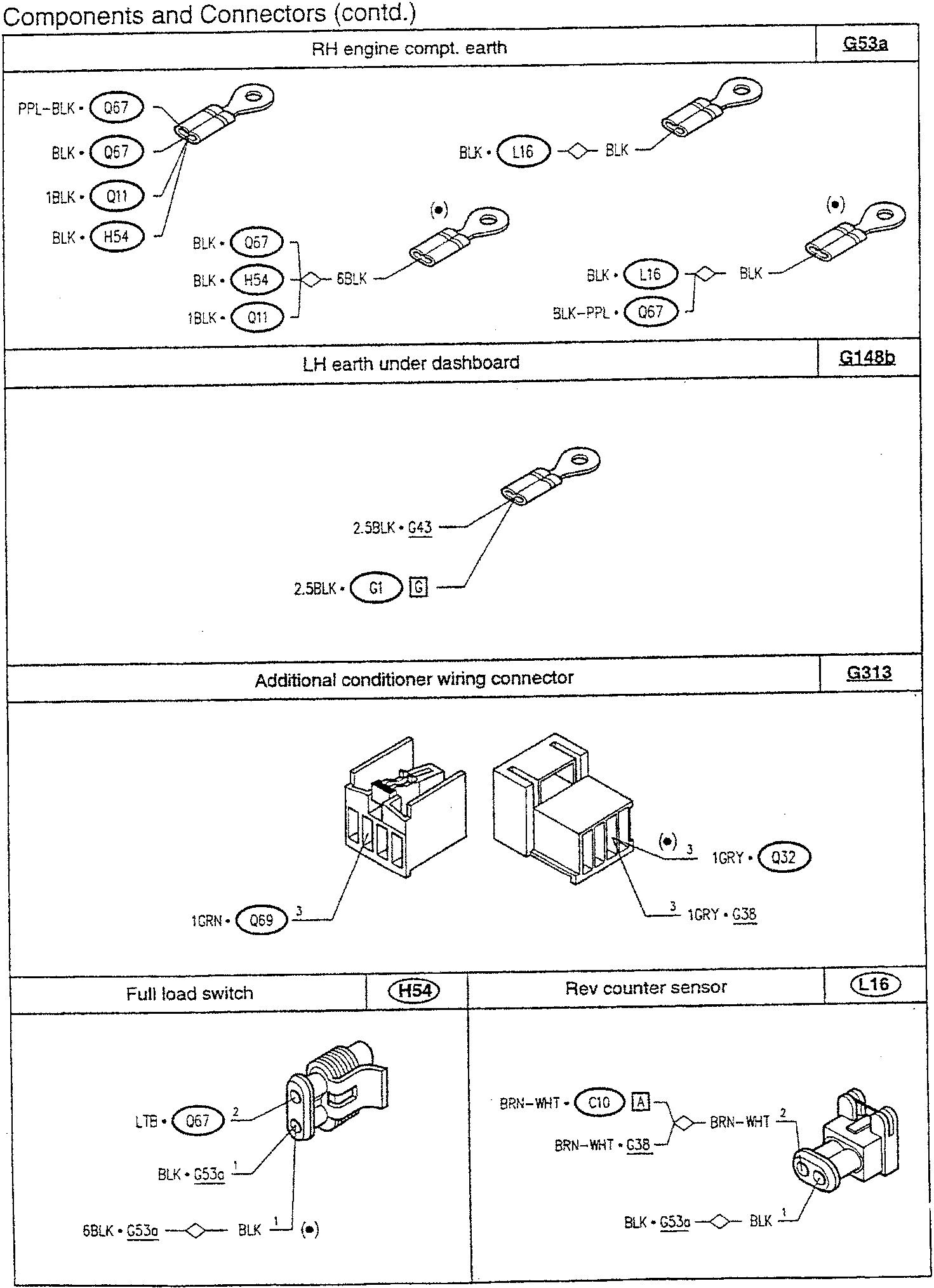

Components and Connectors (contd.)

RH engine compt. earth		G53a
PPL-BLK • Q67	BLK • Q67	BLK • L16 — BLK
1BLK • Q11	BLK • H54	BLK • L16 — BLK
BLK • H54	BLK • Q67	BLK–PPL • Q67
1BLK • Q11	6BLK

LH earth under dashboard		G148b
2.5BLK • G43	2.5BLK • G1

Additional conditioner wiring connector		G313
1CRN • Q69	1GRY • Q32	1GRY • G38

Full load switch	H54	Rev counter sensor	L16
LTB • Q67	BLK • G53a	BRN–WHT • C10	BRN–WHT • G38
6BLK • G53a — BLK		BLK • G53a — BLK

(•) Variant from chassis no....
