145 electrical system diagnosisComponents and Connectors

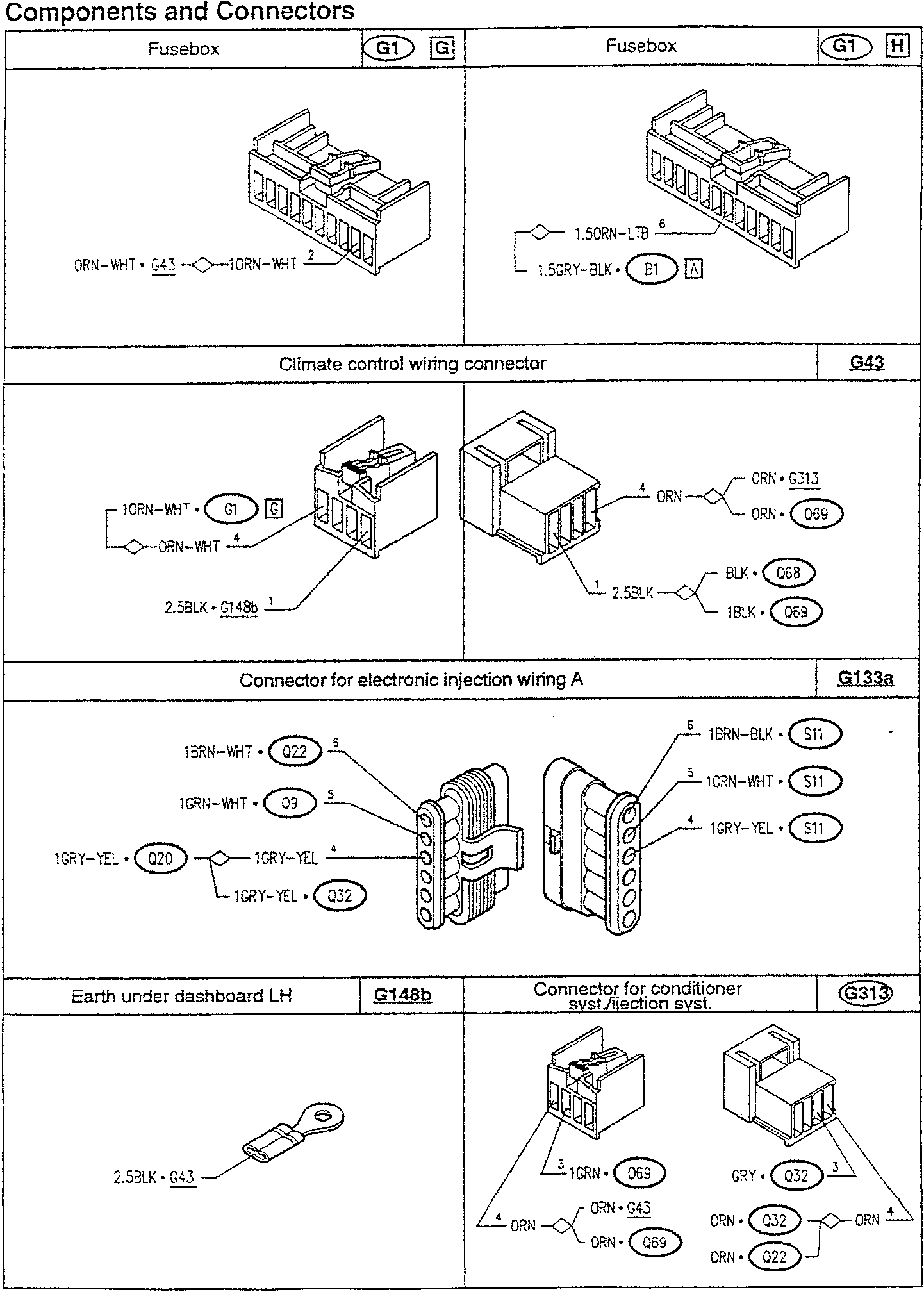

Components and Connectors
| Fusebox | G1 G | Fusebox | G1 H |
|---|---|---|---|
|
|||
Climate control wiring connector
Connector for electronic injection wiring A
Earth under dashboard LH
Connector for conditioner syst./injection syst.
