145 electrical system diagnosisComponents and Connectors (contd.)

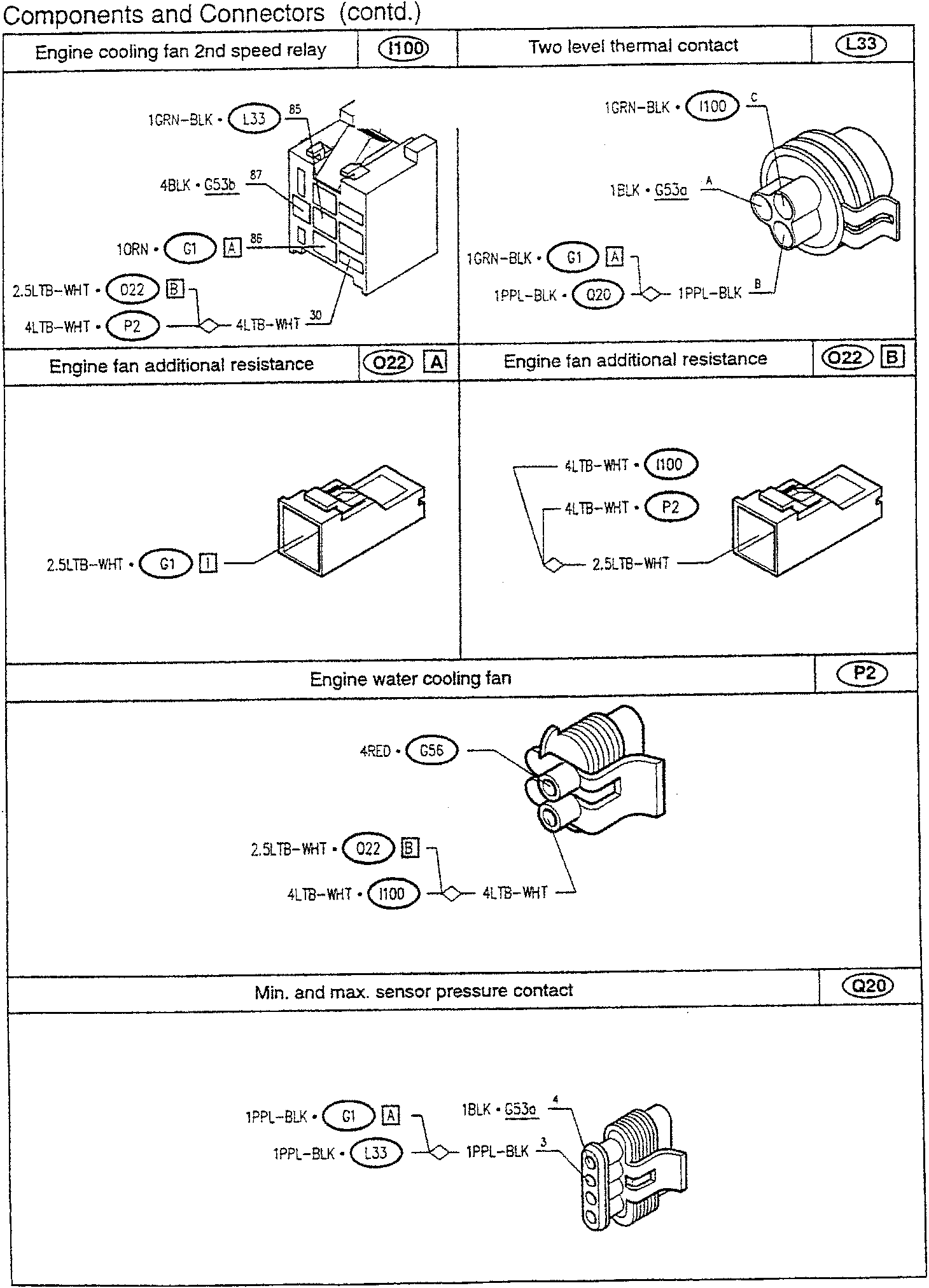

Components and Connectors (contd.)
| Engine cooling fan 2nd speed relay | (1100) | Two level thermal contact | (L33) |
|---|---|---|---|
|
|||
| 1GRN-BLK • (L33) | 1GRN-BLK • (1100) |
| Engine fan additional resistance | (O22 A) | Engine fan additional resistance | (O22 B) |
|---|---|---|---|
| 2.5LTB-WHT • (G1) | 4LTB-WHT • (P2) |
| Engine water cooling fan | (P2) | |
|---|---|---|
| 4RED • (G56) | 2.5LTB-WHT • (O22 B) | 4LTB-WHT • (1100) |
| Min. and max. sensor pressure contact | (Q20) | |
|---|---|---|
| 1PPL-BLK • (G1 A) | 1BLK • G53a | 1PPL-BLK • (L33) |
